BZD27C91P Datasheet Transient Voltage Suppressor

Manufacturer: Galaxy Microelectronics

Overview: Transient Voltage Suppressor Product specification BZD27C - SERIES.

This datasheet includes multiple variants, all published together in a single manufacturer document.

BZD27C91P datasheet preview

Datasheet Details

Part number	BZD27C91P
Manufacturer	Galaxy Microelectronics
File Size	265.30 KB
Description	Transient Voltage Suppressor
Datasheet	BZD27C91P BZD27C5V6P Datasheet (PDF)

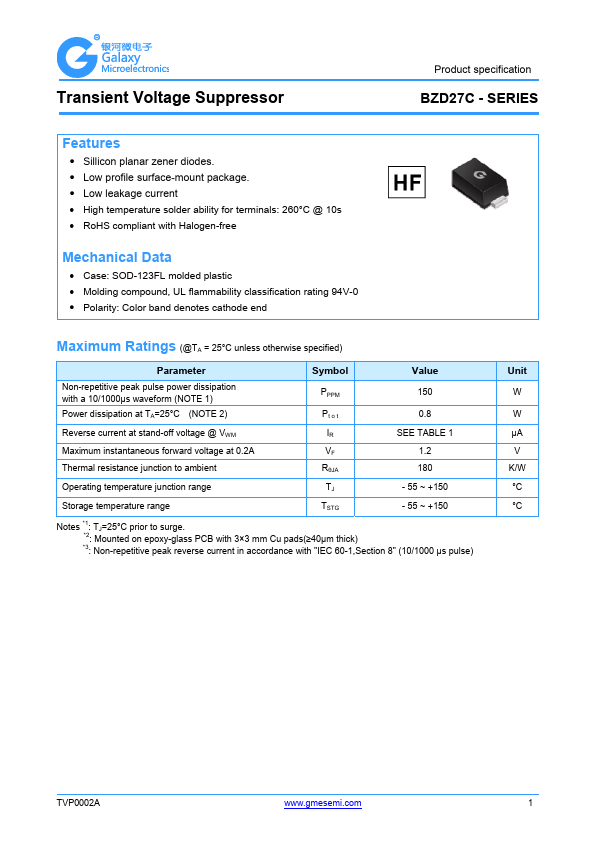

Key Features

Sillicon planar zener diodes.
Low profile surface-mount package.
Low leakage current.
High temperature solder ability for terminals: 260°C @ 10s.
RoHS compliant with Halogen-free Mechanical Data.
Case: SOD-123FL molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Symbol Value Non-repetitive peak pulse power dissipati.
