BZG05C12 - Zener Diodes

This page provides the datasheet information for the BZG05C12, a member of the BZG05C3V3 Zener Diodes family.

Features

  • High reliability.
  • Voltage range 3.3 V to 100 V.
  • Fits onto 5 mm SMD footpads.
  • RoHS compliant with Halogen-free Mechanical Data.
  • Case: SMA molded plastic.
  • Molding compound, UL flammability classification rating 94V-0.
  • Terminals: Solder plated, solderable per MIL- STD-202,Method 208.
  • Polarity: Color band denotes cathode end Absolute Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Test condition Power dissipation Non repetitive peak surge.

📥 Download Datasheet

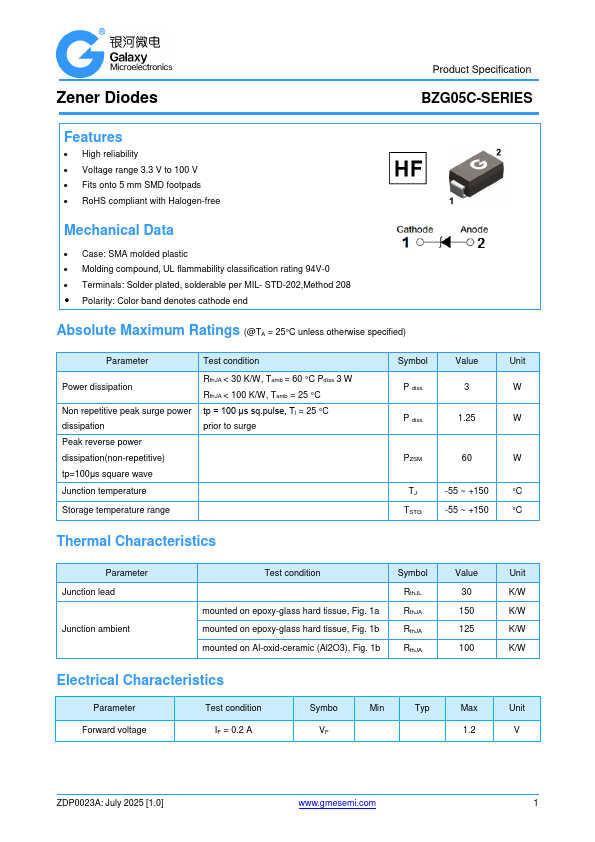

Datasheet preview – BZG05C12

📁 Similar Datasheet

Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text

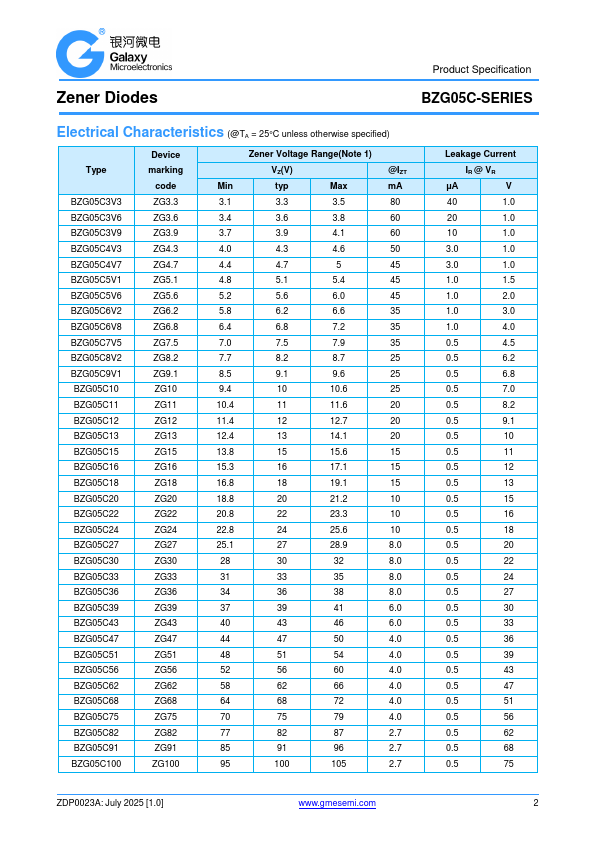

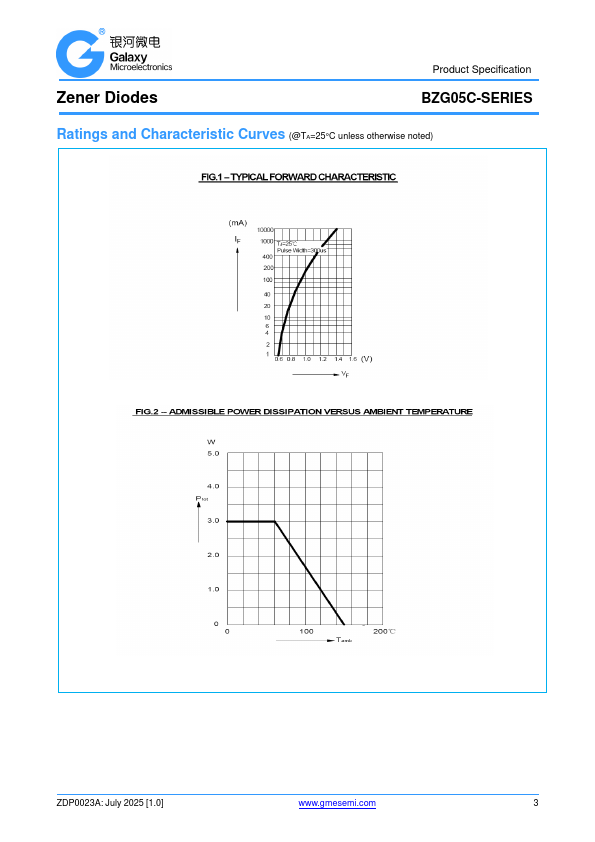

Zener Diodes Product Specification BZG05C-SERIES Features  High reliability  Voltage range 3.3 V to 100 V  Fits onto 5 mm SMD footpads  RoHS compliant with Halogen-free Mechanical Data  Case: SMA molded plastic  Molding compound, UL flammability classification rating 94V-0  Terminals: Solder plated, solderable per MIL- STD-202,Method 208  Polarity: Color band denotes cathode end Absolute Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Test condition Power dissipation Non repetitive peak surge power dissipation Peak reverse power dissipation(non-repetitive) tp=100μs square wave RthJA < 30 K/W, Tamb = 60 °C Pdiss 3 W RthJA < 100 K/W, Tamb = 25 °C tp = 100 μs sq.
Published: |
