BZG05C13 Datasheet Zener Diodes

Manufacturer: Galaxy Microelectronics

Download the BZG05C13 datasheet PDF. This datasheet also includes the BZG05C3V3 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

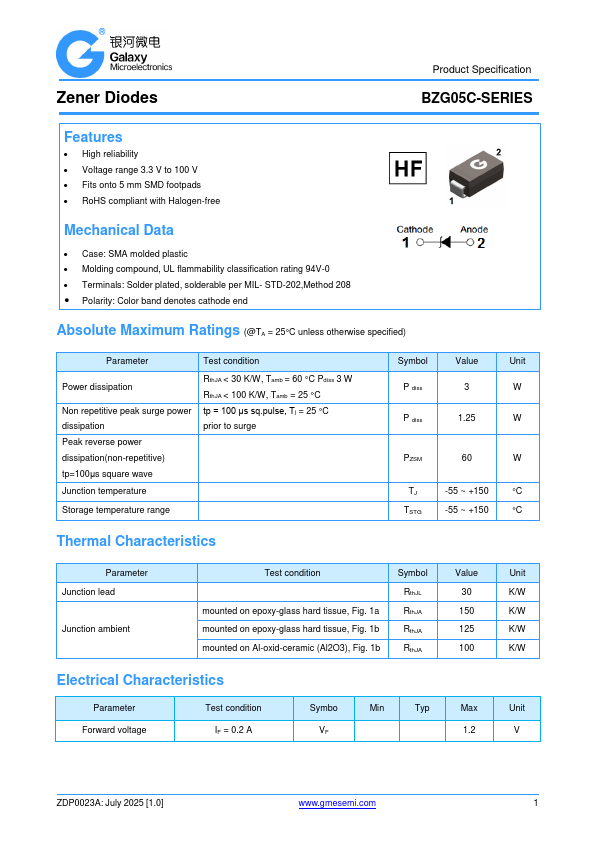

BZG05C13 zener diodes by Galaxy Microelectronics - Datasheet Preview — Note: The manufacturer provides a single datasheet file (BZG05C3V3-GME.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	BZG05C13
Manufacturer	Galaxy Microelectronics
File Size	284.01 KB
Description	Zener Diodes
Datasheet	BZG05C13 Datasheet

Overview

Zener Diodes Product Specification BZG05C-SERIES.

Key Features

High reliability.
Voltage range 3.3 V to 100 V.
Fits onto 5 mm SMD footpads.
RoHS compliant with Halogen-free Mechanical Data.
Case: SMA molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Terminals: Solder plated, solderable per MIL- STD-202,Method 208.
Polarity: Color band denotes cathode end Absolute Maximum Ratings (@TA = 25°C unless otherwise specified) Parameter Test condition Power dissipation Non repetitive peak surge.
