BZG05C47 Overview

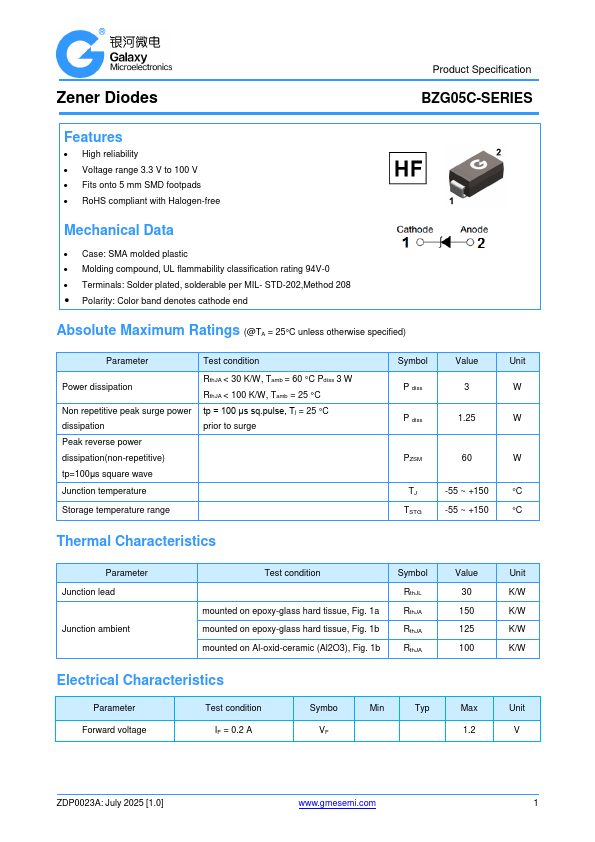

Zener Diodes Product Specification BZG05C-SERIES.
BZG05C47 Key Features
- High reliability
- Voltage range 3.3 V to 100 V
- Fits onto 5 mm SMD footpads
- RoHS pliant with Halogen-free
- Case: SMA molded plastic
- Molding pound, UL flammability classification rating 94V-0
- Terminals: Solder plated, solderable per MIL- STD-202,Method 208
- Polarity: Color band denotes cathode end
