BZG05C6V2
BZG05C6V2 is Zener Diodes manufactured by Galaxy Microelectronics.
- Part of the BZG05C3V3 comparator family.
- Part of the BZG05C3V3 comparator family.

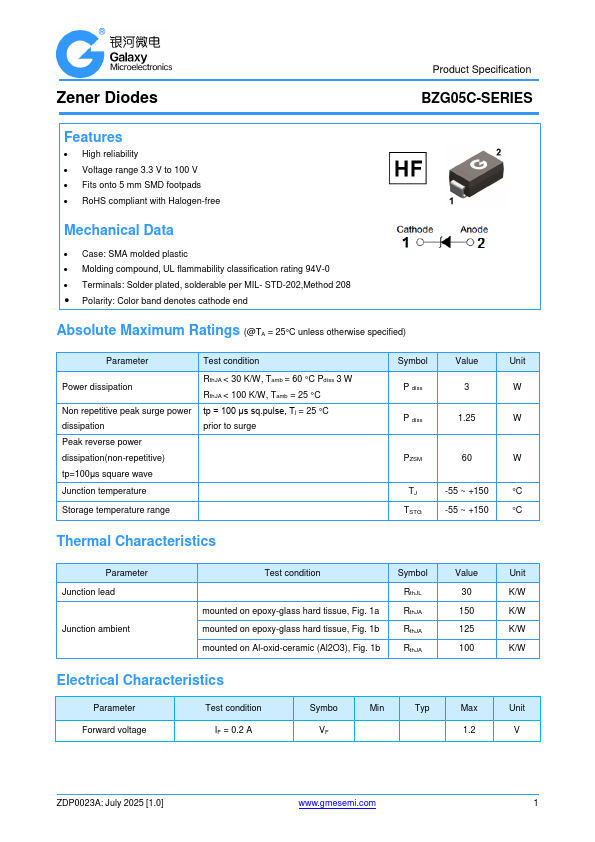

Zener Diodes
Product Specification
BZG05C-SERIES
Features
- High reliability
- Voltage range 3.3 V to 100 V
- Fits onto 5 mm SMD footpads
- RoHS pliant with Halogen-free
Mechanical Data
- Case: SMA molded plastic
- Molding pound, UL flammability classification rating 94V-0
- Terminals: Solder plated, solderable per MIL- STD-202,Method 208
- Polarity: Color band denotes cathode...
