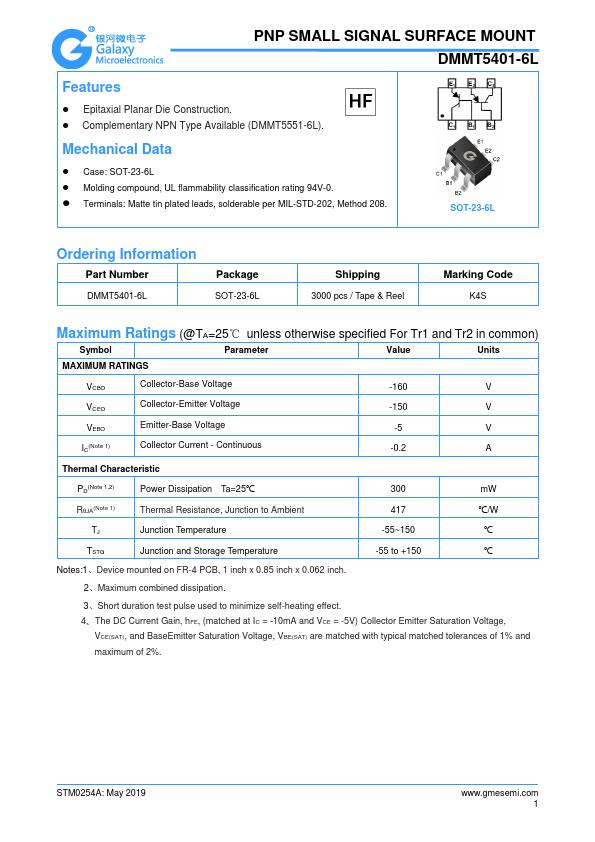

DMMT5401-6L
Features
- Epitaxial Planar Die Construction.
- plementary NPN Type Available (DMMT5551-6L).
Mechanical Data
- Case: SOT-23-6L
- Molding pound, UL flammability classification rating 94V-0.
- Terminals: Matte tin plated leads, solderable per MIL-STD-202, Method 208.
SOT-23-6L
Ordering Information
Part Number
Package
SOT-23-6L
Shipping
3000 pcs / Tape & Reel
Marking Code
K4S
Maximum Ratings (@TA=25℃ unless otherwise specified For Tr1 and Tr2 in mon)
Symbol
Parameter
Value
Units
MAXIMUM RATINGS
VCBO VCEO VEBO IC(Note 1)
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current
- Continuous
-160
-150
-5
-0.2
Thermal Characteristic
PD(Note 1,2)
Power Dissipation Ta=25℃
300 m W
RθJA(Note 1)
Thermal Resistance, Junction to...
