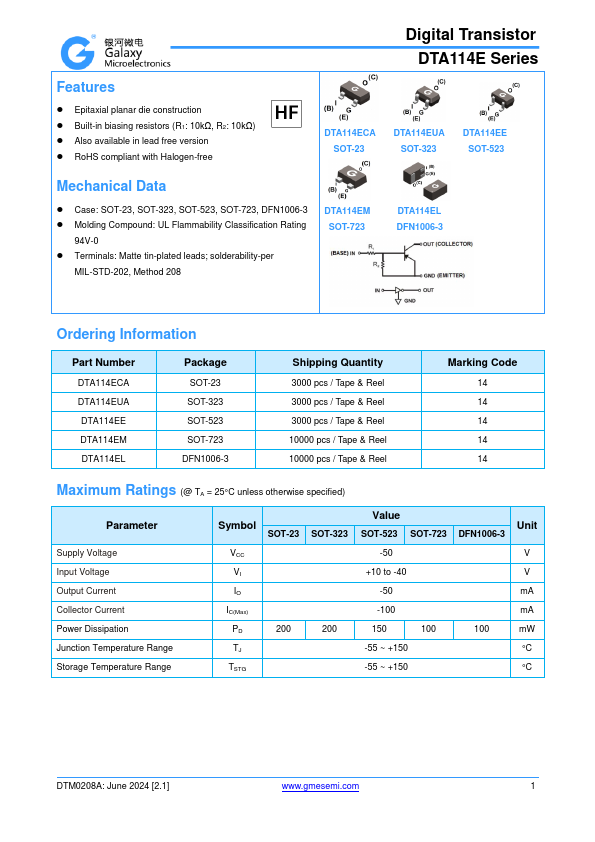

DTA114EUA Description
Features Epitaxial planar die construction Built-in biasing resistors (R1: 10kΩ) Also available in lead free version RoHS pliant with Halogen-free Digital Transistor DTA114E Series DTA114ECA SOT-23 DTA114EUA SOT-323 DTA114EE SOT-523 Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3 Molding pound:.
DTA114EUA Key Features
- Epitaxial planar die construction
- Built-in biasing resistors (R1: 10kΩ, R2: 10kΩ)
- Also available in lead free version
- RoHS pliant with Halogen-free
- Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3
- Molding pound: UL Flammability Classification Rating
- 55 ~ +150
- 55 ~ +150
- 0.5 30 7
- VI(ON)（V）
