Galaxy Century Microelectronics DTA143EM
Digital Transistor
| Part No. | DTA143EM |
|---|---|
| Datasheet | DTA143EM Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Digital Transistor |
| Buy | Stock & Price |
FEATURES
● Epitaxial planar die construction.● Complementary NPN types available(DTC).
● Built-in biasing resistors,R1=R2.
● Also available in lead free version. DTA(R1=R2 SERIES)M
APPLICATIONS

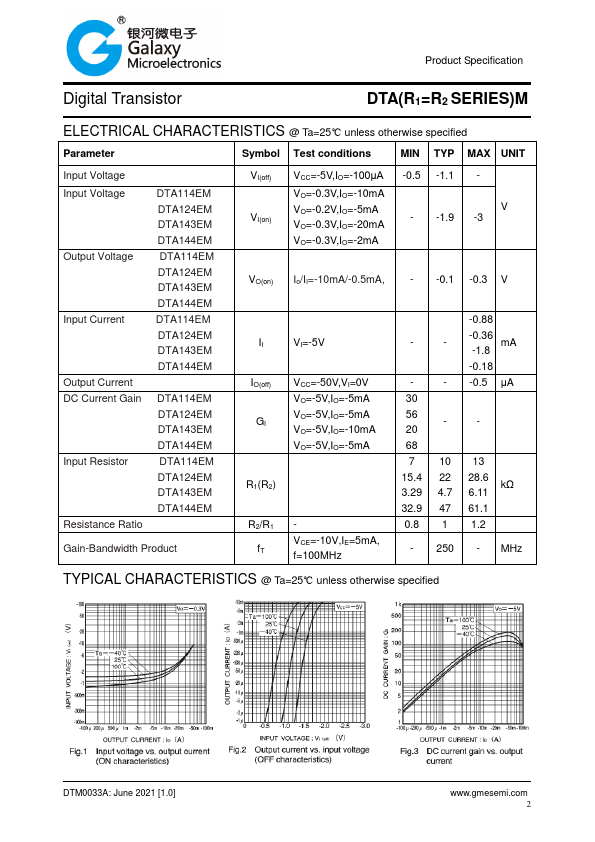

● The PNP style digital transistor. SOT-723 ORDERING INFORMATION Type No. DTA114EM DTA124EM DTA143EM DTA144EM Marking 14 15 13 16 Package Code SOT-723 SOT-723 SOT-723 SOT-723 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter VCC Supply Voltage Input Voltage VIN Output Current IO DTA114EM DTA124EM DTA143EM DTA144EM DTA114EM DTA124EM DTA143EM DTA144EM IC(Max.) Output current ALL PD Power Dissipation RθJA Thermal Resistance, Junction to Ambient Air Tj,Tstg Operating and Storage and Temperature Range Value -50 +10 to -40 +10 to -40 +10 to -30 +10 to -40 -50 -30 -100 -30 -100 100 1250 -55 to +150 Units V V mA mA mW ℃/W ℃ DTM0033A: June 2021 [1.0] 1 Product Specification Digital Transistor DTA(R1=R2 SERIES)MELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified Parameter Sy...
