Galaxy Century Microelectronics DTA143XM
Digital Transistor
| Part No. | DTA143XM |
|---|---|
| Datasheet | DTA143XM Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Digital Transistor |
| Buy | Stock & Price |

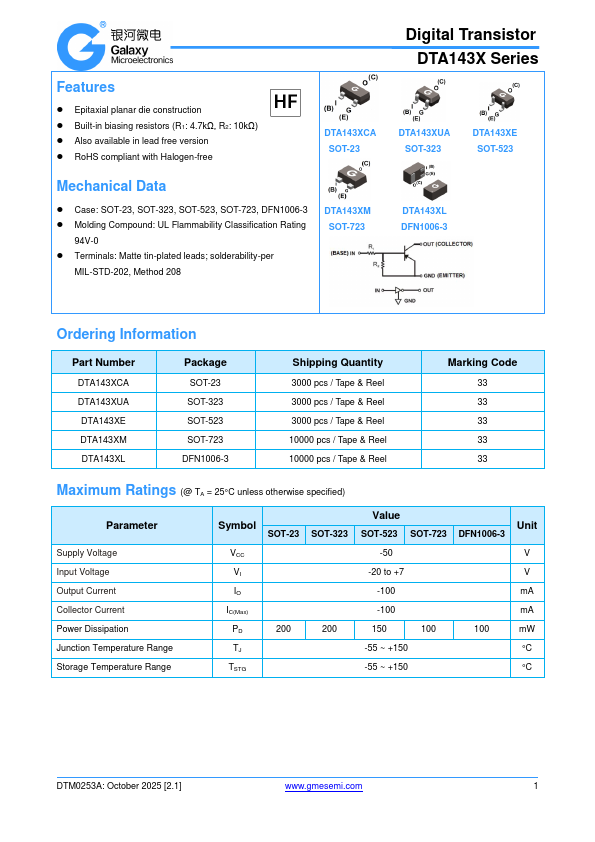

FEATURES
● Epitaxial planar die construction● Built-in biasing resistors (R1: 4.7kΩ, R2: 10kΩ)
● Also available in lead free version
● RoHS compliant with Halogen-free Digital Transistor DTA143X Series DTA143XCA SOT-23 DTA143XUA SOT-323 DTA143XE SOT-523
MECHANICAL DATA
● Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 DTA143XM SOT-723 DTA143XL DFN1006-3 Ordering Information Part Number DTA143XCA DTA143XUA DTA143XE DTA143XM DTA143XL Package SOT-23 SOT-323 SOT-523 SOT-723 DFN1006-3 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 10000 pcs / Tape & Reel 10000 pcs / Tape & Reel Marking Code 33 33 33 33 33
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Supply Voltage Input Voltage Output Current Collector Current Power Dissipation Junction Temperature Range Storage Temperature Range Value...
