DTA143ZUA Datasheet Digital Transistor

Manufacturer: Galaxy Microelectronics

This datasheet includes multiple variants, all published together in a single manufacturer document.

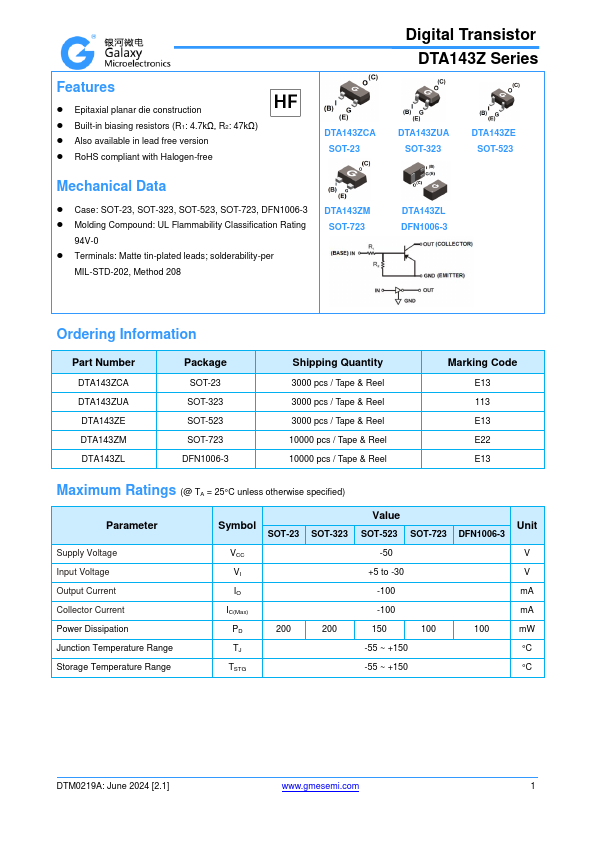

Datasheet Details

Epitaxial planar die construction.
Built-in biasing resistors (R1: 4.7kΩ, R2: 47kΩ).
Also available in lead free version.
RoHS compliant with Halogen-free Digital Transistor DTA143Z Series DTA143ZCA SOT-23 DTA143ZUA SOT-323 DTA143ZE SOT-523 Mechanical Data.
Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3.
Molding Compound: UL Flammability Classification Rating 94V-0.
Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 DTA143Z.

Part Number	Description	Manufacturer
DTA143ZUA	PNP Digital Transistor	LGE
DTA143ZUA	PNP Digital Transistor	JCST
DTA143ZUA	PNP Digital Transistors	SeCoS
DTA143ZUA	PNP -100mA -50V Digital Transistors	Rohm
DTA143ZUA	PNP Digital Transistors	MCC
