DTC114EE - Digital Transistor

Galaxy Microelectronics

Key Features

Pb.
Epitaxial planar die construction. Lead-free.
Complementary NPN types available(DTC).
Built-in biasing resistors,R1=R2.
Also available in lead free version.

DTC114EE digital transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	DTC114EE
Manufacturer	Galaxy Microelectronics
File Size	196.44 KB
Description	Digital Transistor
Datasheet	DTC114EE Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
DTC114EE	NPN 100mA 50V Digital Transistors	Rohm
DTC114EE	NPN Digital Transistor	JCST
DTC114EE	Small Signal Diode	Taiwan Semiconductor
DTC114EE	NPN Digital Transistor	LGE
DTC114EE	NPN TRANSISTOR	AiT Semiconductor

Other Datasheets by Galaxy Microelectronics

Part Number	Description
DTC114ECA	Digital Transistor
DTC114EUA	Digital Transistor
DTC114TCA	Digital Transistor
DTC114TE	Digital Transistor
DTC114TUA	Digital Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

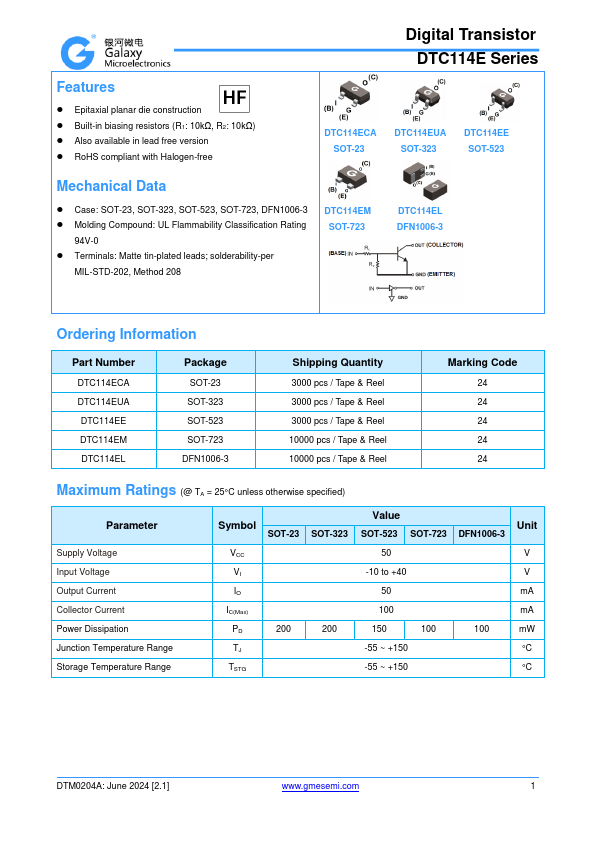

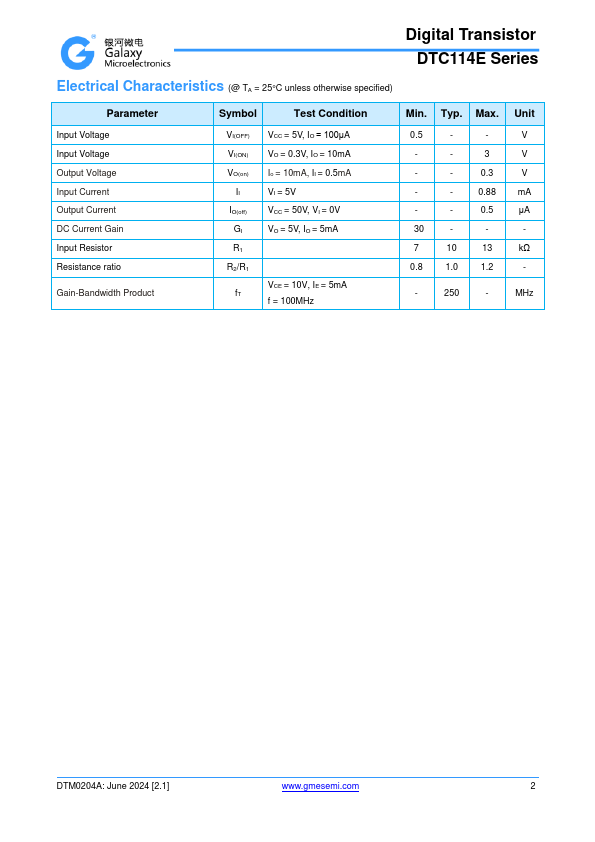

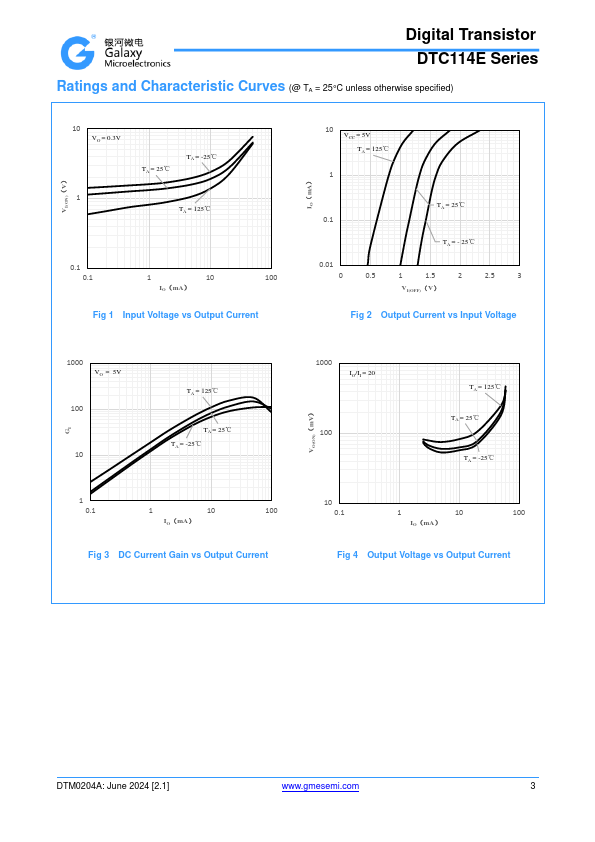

Production specification Digital Transistor DTC(R1=R2 SERIES)E FEATURES Pb  Epitaxial planar die construction. Lead-free  Complementary NPN types available(DTC).  Built-in biasing resistors,R1=R2.  Also available in lead free version. APPLICATIONS  The NPN style digital transistor. ORDERING INFORMATION Type No. Marking DTC114EE DTC124EE DTC143EE DTC144EE 24 25 23 26 SOT-523 Package Code SOT-523 SOT-523 SOT-523 SOT-523 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter VCC Supply Voltage Input Voltage VIN Output Current IO DTC114EE DTC124EE DTC143EE DTC144EE DTC114EE DTC124EE DTC143EE DTC144EE IC(Max.
