DTC114EL
DTC114EL is Digital Transistor manufactured by Galaxy Microelectronics.
- Part of the DTC114ECA comparator family.
- Part of the DTC114ECA comparator family.

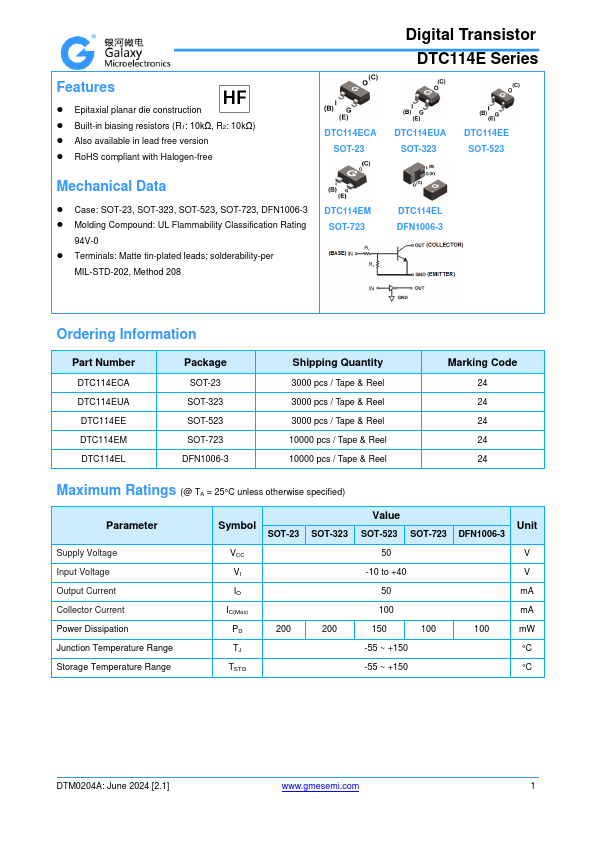

Features
- Epitaxial planar die construction
- Built-in biasing resistors (R1: 10kΩ, R2: 10kΩ)
- Also available in lead free version
- Ro HS pliant with Halogen-free
Digital Transistor DTC114E Series
DTC114ECA SOT-23
DTC114EUA SOT-323
DTC114EE SOT-523
Mechanical Data
- Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3
- Molding pound: UL Flammability Classification Rating
94V-0
- Terminals: Matte tin-plated leads; solderability-per
MIL-STD-202, Method 208
DTC114EM SOT-723
DTC114EL DFN1006-3
Ordering Information
Part Number
DTC114ECA DTC114EUA DTC114EE DTC114EM DTC114EL
Package
SOT-23 SOT-323 SOT-523 SOT-723 DFN1006-3
Shipping Quantity
3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 10000 pcs / Tape & Reel 10000 pcs / Tape & Reel
Marking Code
24 24 24 24 24
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Supply Voltage Input Voltage Output Current Collector Current Power Dissipation Junction Temperature Range Storage Temperature Range
Value
Symbol
Unit
SOT-23 SOT-323 SOT-523 SOT-723 DFN1006-3
-10 to +40
50 m...
