DTC143EL
DTC143EL is Digital Transistor manufactured by Galaxy Microelectronics.
- Part of the DTC143ECA comparator family.
- Part of the DTC143ECA comparator family.

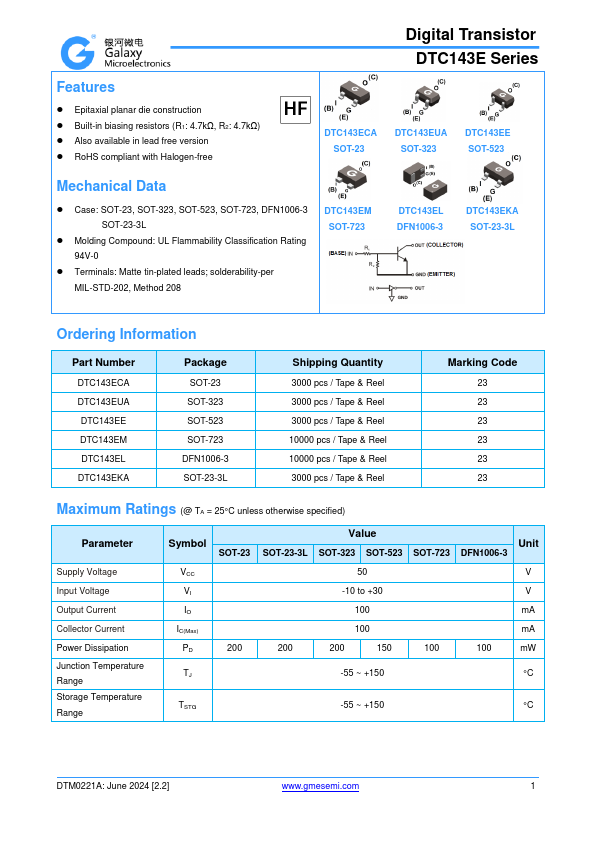

Features
- Epitaxial planar die construction
- Built-in biasing resistors (R1: 4.7kΩ, R2: 4.7kΩ)
- Also available in lead free version
- Ro HS pliant with Halogen-free
Digital Transistor DTC143E Series
DTC143ECA SOT-23
DTC143EUA SOT-323
DTC143EE SOT-523
Mechanical Data
- Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3 SOT-23-3L
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
DTC143EM SOT-723
DTC143EL DFN1006-3
DTC143EKA SOT-23-3L
Ordering Information
Part Number
DTC143ECA DTC143EUA DTC143EE DTC143EM DTC143EL DTC143EKA
Package
SOT-23 SOT-323 SOT-523 SOT-723 DFN1006-3 SOT-23-3L
Shipping Quantity
3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 10000 pcs / Tape & Reel 10000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code
23 23 23 23 23 23
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Value
Symbol
Unit
SOT-23 SOT-23-3L SOT-323 SOT-523 SOT-723 DFN1006-3
Supply Voltage
Input Voltage
-10 to +30
Output Current
100 m...
