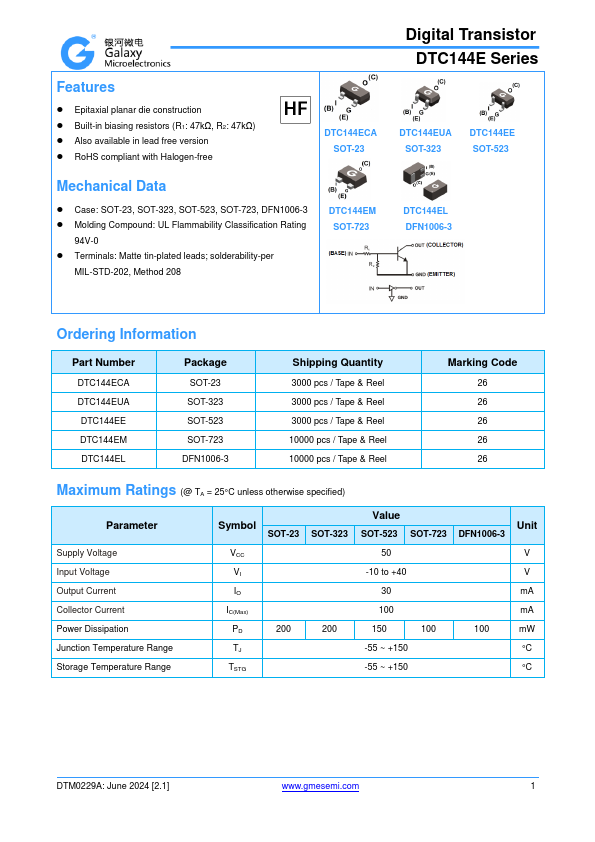

DTC144EL
DTC144EL is Digital Transistor manufactured by Galaxy Microelectronics.
- Part of the DTC114ECA comparator family.
- Part of the DTC114ECA comparator family.
Features
- Epitaxial planar die construction
- Built-in biasing resistors (R1: 47kΩ, R2: 47kΩ)
- Also available in lead free version
- Ro HS pliant with Halogen-free
Digital Transistor DTC144E Series
DTC144ECA SOT-23
DTC144EUA SOT-323
DTC144EE SOT-523
Mechanical Data
- Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3
- Molding pound: UL Flammability Classification Rating
94V-0
- Terminals: Matte tin-plated leads; solderability-per
MIL-STD-202, Method 208
DTC144EM SOT-723
DTC144EL DFN1006-3
Ordering Information
Part Number
DTC144ECA DTC144EUA DTC144EE DTC144EM DTC144EL
Package
SOT-23 SOT-323 SOT-523 SOT-723 DFN1006-3
Shipping Quantity
3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 10000 pcs / Tape & Reel 10000 pcs / Tape & Reel
Marking Code
26 26 26 26 26
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Supply Voltage Input Voltage Output Current Collector Current Power Dissipation Junction Temperature Range Storage Temperature Range
Value
Symbol
Unit
SOT-23 SOT-323 SOT-523 SOT-723 DFN1006-3
-10 to +40
30 m...
