ESD5Z7.0 Overview
Features ESD / transient protection of high speed data lines IEC 61000-4-2 (ESD): ±30kV (air), ±30 kV (contact) Low reverse stand−off voltage: 2.5V-12V Very low leakage current RoHS pliant with Halogen-free Single Line TVS Diode ESD5ZXX Case:.

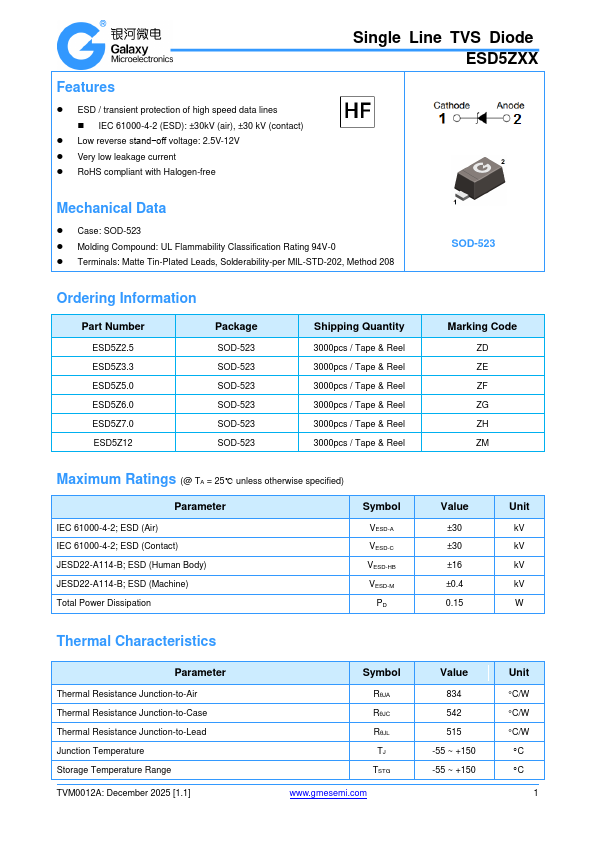

ESD5Z7.0 Key Features
- ESD / transient protection of high speed data lines
- IEC 61000-4-2 (ESD): ±30kV (air), ±30 kV (contact)
- Low reverse stand-off voltage: 2.5V-12V
- Very low leakage current
- RoHS pliant with Halogen-free
- Case: SOD-523
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte Tin-Plated Leads, Solderability-per MIL-STD-202, Method 208
