Galaxy Century Microelectronics ESDA25L
DUAL TRANSIL ARRAY
| Part No. | ESDA25L |
|---|---|
| Datasheet | ESDA25L Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | DUAL TRANSIL ARRAY |
| Buy | Stock & Price |
FEATURES
● 2 unidirectional transil functions● Low leakage current
● 300W peak pulse power (8/20us)
● High integration ESDAXXL
APPLICATIONS

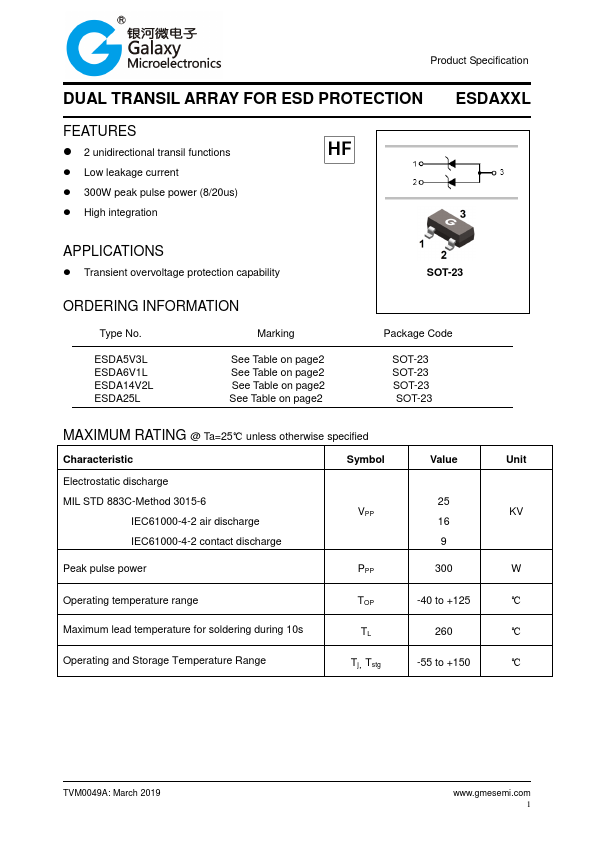

● Transient overvoltage protection capability ORDERING INFORMATION Type No. Marking ESDA5V3L ESDA6V1L ESDA14V2L ESDA25L See Table on page2 See Table on page2 See Table on page2 See Table on page2 SOT-23 Package Code SOT-23 SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Characteristic Symbol Value Unit Electrostatic discharge MIL STD 883C-Method 3015-6 IEC61000-4-2 air discharge 25 VPP KV 16 IEC61000-4-2 contact discharge 9 Peak pulse power PPP 300 W Operating temperature range Maximum lead temperature for soldering during 10s Operating and Storage Temperature Range TOP -40 to +125 ℃ TL 260 ℃ Tj，Tstg -55 to +150 ℃ TVM0049A: March 2019 1 Product Specification DUAL TRANSIL ARRAY FOR ESD PROTECTION ESDAXXLELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified Types Device VRM Marking IRM@ VRM V μA Breakdown voltage Dy...
