ESDA5V3L Datasheet | Galaxy Microelectronics

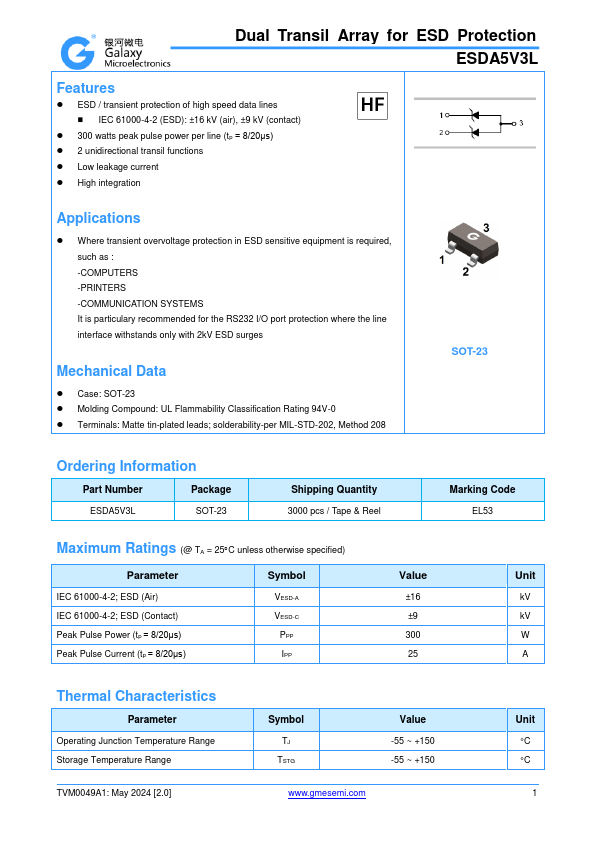

Features - ESD / transient protection of high speed data lines - IEC 61000-4-2 (ESD): ±16 k V (air), ±9 k V (contact) - 300 watts peak pulse power per line (tp = 8/20μs) - 2 unidirectional transil functions - Low leakage current - High integration Applications - Where transient overvoltage protection in ESD sensitive equipment is required, such as : -PUTERS -PRINTERS -MUNICATION SYSTEMS It is particulary remended for the RS232 I/O port protection where the line interface withstands only with 2k V ESD surges Mechanical Data - Case: SOT-23 - Molding pound: UL Flammability Classification Rating 94V-0 - Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number Package SOT-23 Shipping Quantity 3000 pcs / Tape & Reel Marking Code EL53 Maximum Ratings (@ TA = 25C unless otherwise specified) Parameter IEC 61000-4-2; ESD (Air) IEC 61000-4-2; ESD (Contact) Peak Pulse Power (tp = 8/20μs) Peak Pulse Current (tp =...
