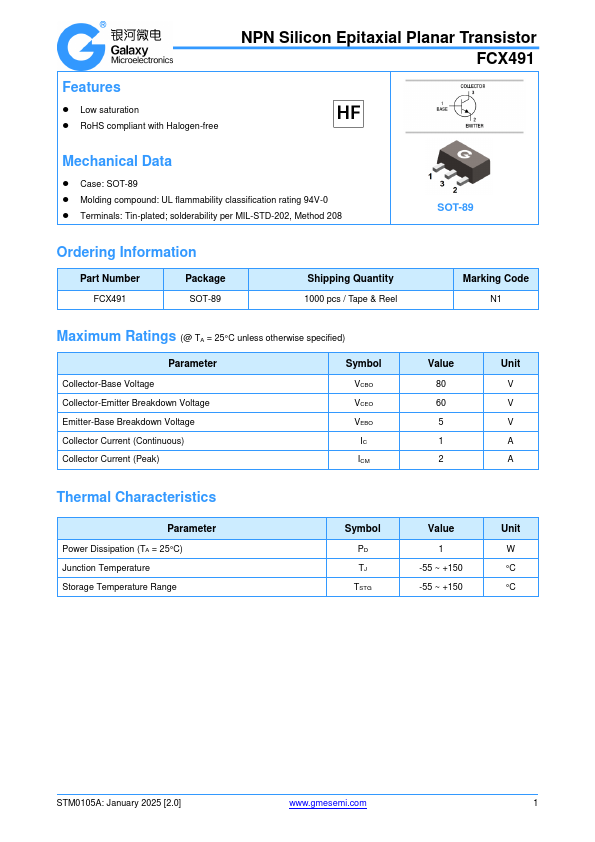

Galaxy Century Microelectronics FCX491
NPN Silicon Epitaxial Planar Transistor
| Part No. | FCX491 |
|---|---|
| Datasheet | FCX491 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | NPN Silicon Epitaxial Planar Transistor |
| Buy | Stock & Price |
FEATURES
● Low saturation● RoHS compliant with Halogen-free NPN Silicon Epitaxial Planar Transistor FCX491
MECHANICAL DATA
● Case: SOT-89● Molding compound: UL flammability classification rating 94V-0
● Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-89 Ordering Information Part Number FCX491 Package SOT-89 Shipping Quantity 1000 pcs / Tape & Reel Marking Code N1
MAXIMUM RATINGS

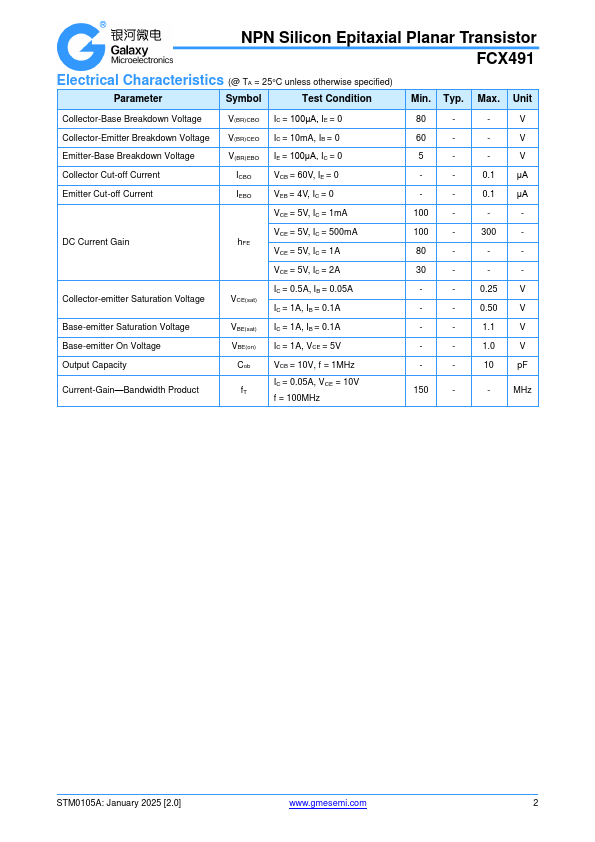

(@ TA = 25°C unless otherwise specified) Parameter Collector-Base Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (Continuous) Collector Current (Peak) Symbol VCBO VCEO VEBO IC ICM Value 80 60 5 1 2 Unit V V V A A Thermal Characteristics Parameter Power Dissipation (TA = 25°C) Junction Temperature Storage Temperature Range Symbol PD TJ TSTG Value 1 -55 ~ +150 -55 ~ +150 Unit W °C °C STM0105A: January 2025 [2.0] 1 NPN Silicon Epitaxial Planar Transistor FCX491ELECTRICAL CHARACTERISTICS
(@ TA = 25°C unless otherwise specified) Parameter Symbol Test Condition Min.
