FMMT449 - NPN Transistor

Key Features

  • Low equivalent on-resistance,RCE(sat): 250mΩ at 1A.
  • Complementary To FMMT549. Pb Lead-free FMMT449.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FMMT449 NPN Transistor MCC
FMMT449 Medium Power Transistor Kexin
FMMT449 NPN SILICON PLANAR MEDIUM POWER TRANSISTOR Zetex Semiconductors
FMMT449 NPN Low Saturation Transistor Fairchild Semiconductor
FMMT4400 SOT23 NPN SILICON PLANAR GENERAL PURPOSE TRANSISTORS Zetex Semiconductors

Other Datasheets by Galaxy Microelectronics

Part Number Description
FMMT4124 NPN Transistor
FMMT458 NPN Silicon Epitaxial Planar Transistor
FMMT491 NPN Silicon Epitaxial Planar Transistor
FMMT591 PNP Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

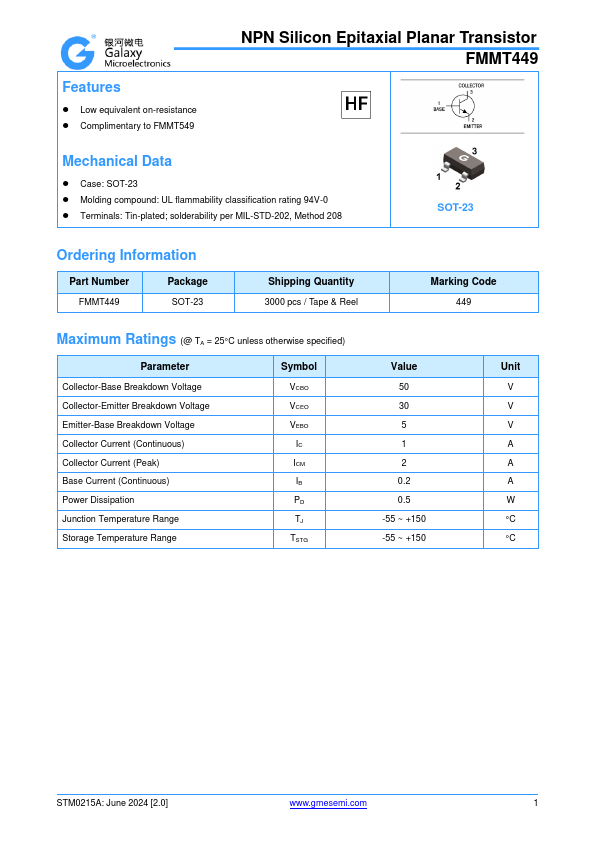

Production specification NPN Silicon Planar Medium Power Transistor FEATURES  Low equivalent on-resistance,RCE(sat): 250mΩ at 1A.  Complementary To FMMT549. Pb Lead-free FMMT449 APPLICATIONS  NPN silicon planar medium power transistor. ORDERING INFORMATION Type No. Marking FMMT449 449 SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 50 VCEO Collector-Emitter Voltage 30 VEBO Emitter-Base Voltage 5 ICM Peak Pulse Current 2 IC Collector Current -Continuous 1 IB Base Current 200 Ptot Power Dissipation 500 Tj，Tstg Junction and Storage Temperature -55 to +150 Units V V V A A mA mW ℃ C051 Rev.A www.gmesemi.
