FMMT591 - PNP Silicon Epitaxial Planar Transistor

Galaxy Microelectronics

Key Features

z High saturation voltage. z Complementary To FMMT491. z Excellent HFE Linearity. Pb Lead-free.

FMMT591 pnp silicon epitaxial planar transistor by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	FMMT591
Manufacturer	Galaxy Microelectronics
File Size	201.65 KB
Description	PNP Silicon Epitaxial Planar Transistor
Datasheet	FMMT591 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
FMMT591	Medium power PNP transistor	Zetex Semiconductors
FMMT591	60V PNP MEDIUM POWER TRANSISTOR	DIODES
FMMT591	PNP Transistor	Rectron
FMMT591	PNP Transistor	MCC
FMMT591	PNP Transistor	LGE

Other Datasheets by Galaxy Microelectronics

Part Number	Description
FMMT4124	NPN Transistor
FMMT449	NPN Transistor
FMMT458	NPN Silicon Epitaxial Planar Transistor
FMMT491	NPN Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

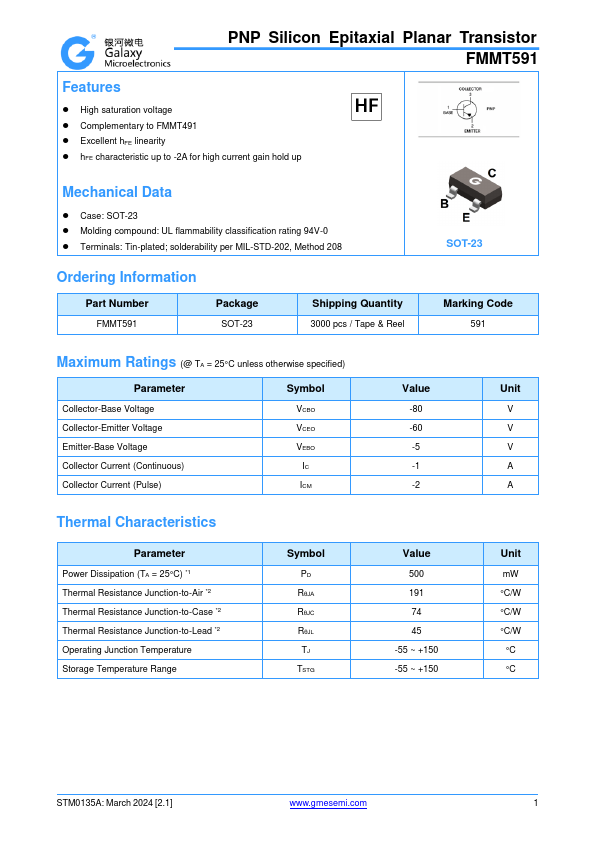

PNP Silicon Epitaxial Planar Transistor FEATURES z High saturation voltage. z Complementary To FMMT491. z Excellent HFE Linearity. Pb Lead-free APPLICATIONS z Switching appilication. Production specification FMMT591 ORDERING INFORMATION Type No. Marking FMMT591 591 SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage -80 VCEO Collector-Emitter Voltage -60 VEBO Emitter-Base Voltage -5 IC Collector Current -Continuous -1000 PC Collector Dissipation 500 Tj,Tstg Junction and Storage Temperature -55 to +150 Units V V V mA mW ℃ C053 Rev.A www.gmicroelec.
