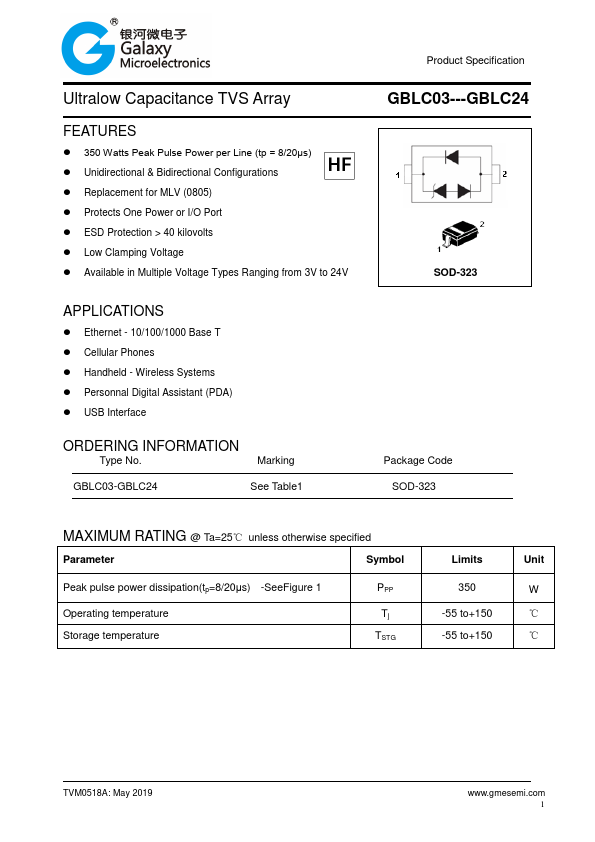

GBLC24 Overview
Ultralow Capacitance TVS Array.
GBLC24 Key Features
- 350 Watts Peak Pulse Power per Line (tp = 8/20μs)
- Unidirectional & Bidirectional Configurations
- Replacement for MLV (0805)
- Protects One Power or I/O Port
- ESD Protection > 40 kilovolts
- Low Clamping Voltage
- Available in Multiple Voltage Types Ranging from 3V to 24V
