GESD12VB3
Features
- ESD / transient protection of high speed data lines
- IEC 61000-4-2 (ESD): ±30 k V (air), ±30 k V (contact)
- Working voltage: VRWM = 12V
- Low reverse clamping voltage
Mechanical Data
- Case: SOD-323
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208

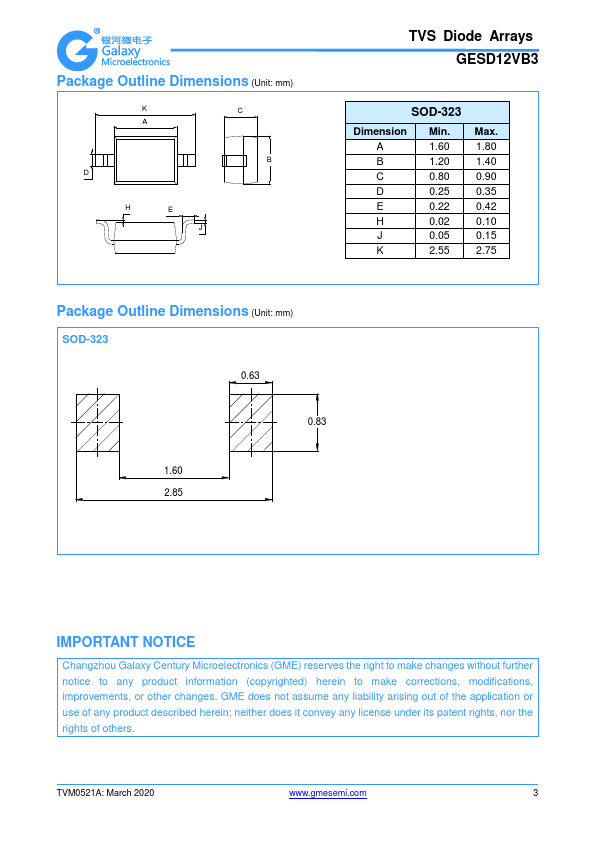

SOD-323
Ordering Information
Part Number
Package
SOD-323
Shipping Quantity
3000 pcs / Tape & Reel
Marking Code
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter
IEC 61000-4-2; ESD (Air) IEC 61000-4-2; ESD (Contact) Peak Pulse Power (tp = 8/20μs) Peak Pulse Current (tp = 8/20μs)
Symbol
VESD-A VESD-C
PPP IPP
Value
±30 ±30 240 9.6
Unit k V k V W A
Thermal Characteristics
Parameter
Junction Temperature Storage Temperature Range
Symbol
TJ TSTG
Value
-55 to+125 -55 to+150
Unit
C C
TVM0521A: March 2020
