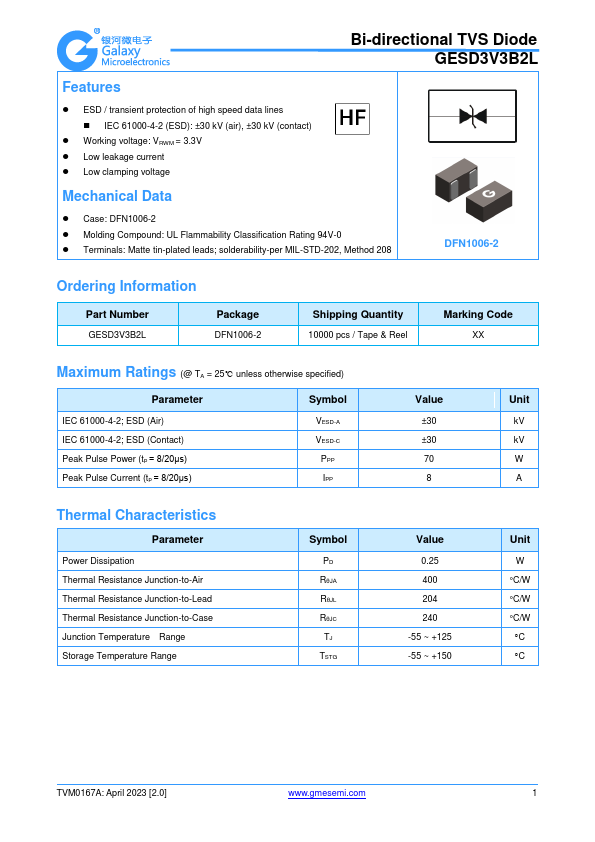

GESD3V3B2L
Features
- ESD / transient protection of high speed data lines
- IEC 61000-4-2 (ESD): ±30 k V (air), ±30 k V (contact)
- Working voltage: VRWM = 3.3V
- Low leakage current
- Low clamping voltage
Mechanical Data
- Case: DFN1006-2
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
DFN1006-2
Ordering Information
Part Number
Package
DFN1006-2
Shipping Quantity
10000 pcs / Tape & Reel
Marking Code
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter
IEC 61000-4-2; ESD (Air) IEC 61000-4-2; ESD (Contact) Peak Pulse Power (tp = 8/20μs) Peak Pulse Current (tp = 8/20μs)
Symbol
VESD-A VESD-C
PPP IPP
Value
±30 ±30 70
Unit k V k V W A
Thermal Characteristics
Parameter
Power Dissipation Thermal Resistance Junction-to-Air Thermal Resistance Junction-to-Lead Thermal Resistance Junction-to-Case Junction Temperature Range Storage Temperature Range
Symbol
PD RθJA RθJL RθJC TJ...
