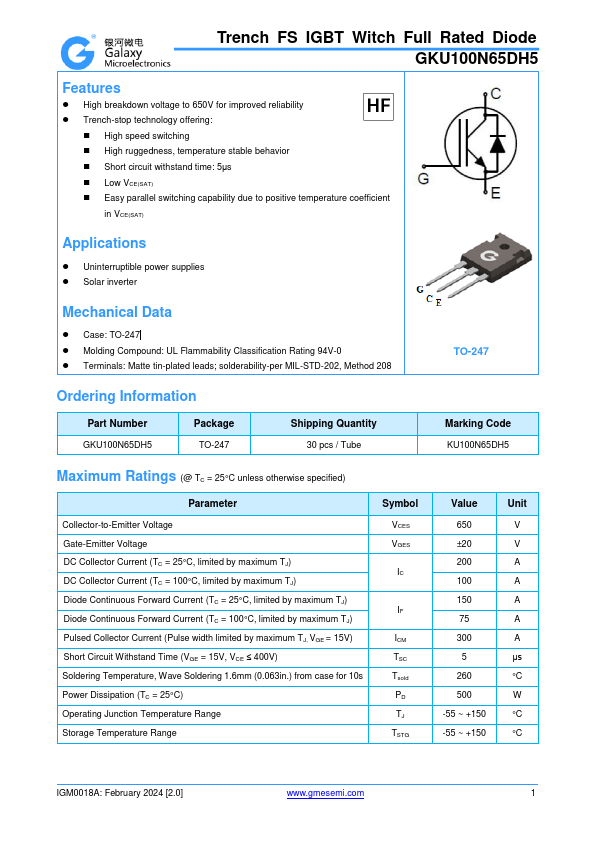

GKU100N65DH5
Features
- High breakdown voltage to 650V for improved reliability
- Trench-stop technology offering:
- High speed switching
- High ruggedness, temperature stable behavior
- Short circuit withstand time: 5μs
- Low VCE(SAT)
- Easy parallel switching capability due to positive temperature coefficient in VCE(SAT)
Applications
- Uninterruptible power supplies
- Solar inverter
Mechanical Data
- Case: TO-247
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
TO-247
Ordering Information
Part Number GKU100N65DH5
Package TO-247
Shipping Quantity 30 pcs / Tube
Marking Code KU100N65DH5
Maximum Ratings (@ TC = 25°C unless otherwise specified)
Parameter Collector-to-Emitter Voltage Gate-Emitter Voltage DC Collector Current (TC = 25°C, limited by maximum TJ) DC Collector Current (TC = 100°C, limited by maximum TJ) Diode Continuous Forward Current (TC = 25°C, limited by maximum TJ) Diode Continuous...
