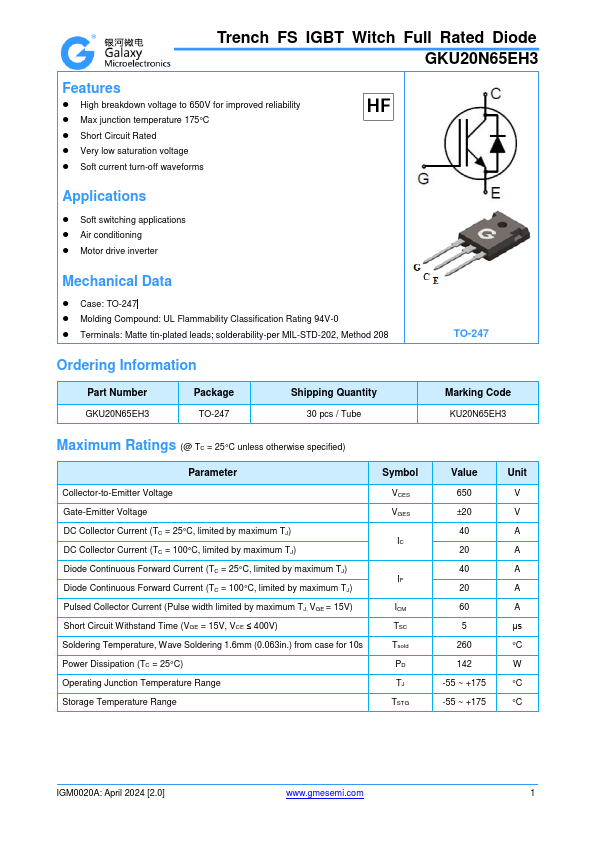

GKU20N65EH3
Features
- High breakdown voltage to 650V for improved reliability
- Max junction temperature 175°C
- Short Circuit Rated
- Very low saturation voltage
- Soft current turn-off waveforms
Applications
- Soft switching applications
- Air conditioning
- Motor drive inverter
Mechanical Data
- Case: TO-247
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
TO-247
Ordering Information
Part Number GKU20N65EH3
Package TO-247
Shipping Quantity 30 pcs / Tube
Marking Code KU20N65EH3
Maximum Ratings (@ TC = 25°C unless otherwise specified)
Parameter Collector-to-Emitter Voltage Gate-Emitter Voltage DC Collector Current (TC = 25°C, limited by maximum TJ) DC Collector Current (TC = 100°C, limited by maximum TJ) Diode Continuous Forward Current (TC = 25°C, limited by maximum TJ) Diode Continuous Forward Current (TC = 100°C, limited by maximum TJ) Pulsed Collector Current (Pulse width limited by maximum...
