Galaxy Century Microelectronics GSOT12
Two-Line ESD Protection
| Part No. | GSOT12 |
|---|---|
| Datasheet | GSOT12 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Two-Line ESD Protection |
| Buy | Stock & Price |
FEATURES
● Two-line ESD-protection device● ESD-protection acc. IEC 61000-4-2 ±30 kV contact discharge ±30 kV air discharge Product Specification GSOT03 – GSOT24
APPLICATIONS

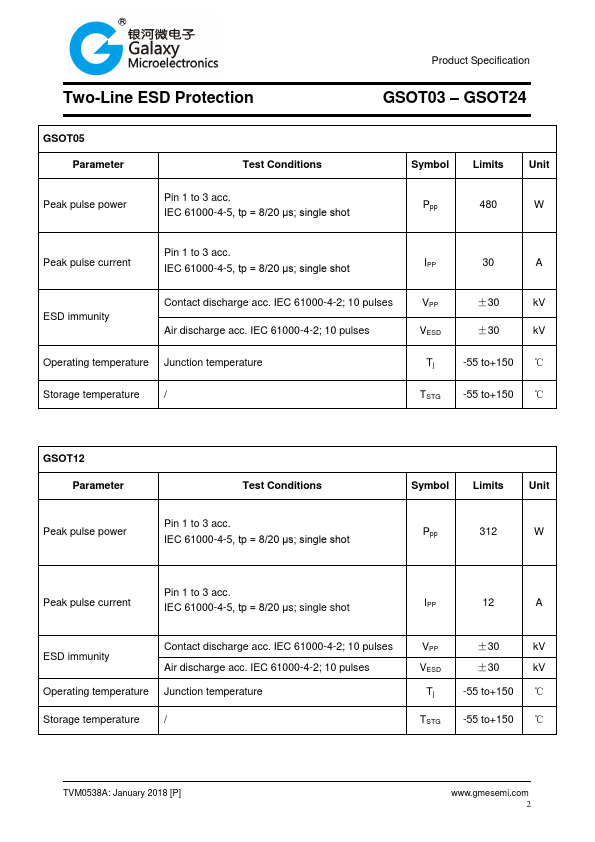

● Cell Phone Handsets and Accessories● Microprocessor based equipment SOT-23 ORDERING INFORMATION Type No. Marking GSOT03 03 GSOT05 05 GSOT12 12 GSOT24 24 Package Code SOT-23 SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified GSOT03 Parameter Test Conditions Symbol Limits Unit Peak pulse power Pin 1 to 3 acc. IEC 61000-4-5, tp = 8/20 μs; single shot Ppp 369 W Peak pulse current Pin 1 to 3 IEC 61000-4-5, tp = 8/20 μs; single shot IPP 30 A ESD immunity Contact discharge acc. IEC 61000-4-2; 10 pulses VPP Air discharge acc. IEC 61000-4-2; 10 pulses VESD ±30 kV ±30 kV Operating temperature Junction temperature Tj -55 to+150 ℃ Storage temperature / TSTG -55 to+150 ℃ TVM0538A: January 2018 [P] 1 Two-Line ESD Protection Product Specification GSOT03 – GSOT24 GSOT05 Parameter Peak pulse power Test Conditions Pin 1 to 3 acc.
