GVS35F - Schottky Barrier Rectifiers

Product Overview

GME

📥 Download Datasheet

GVS35F Schottky Barrier Rectifiers by GME - Datasheet Preview — Datasheet preview – GVS35F

Datasheet Details

Part number	GVS35F
Manufacturer	GME
File Size	372.71 KB
Description	Schottky Barrier Rectifiers
Datasheet	GVS35F Datasheet

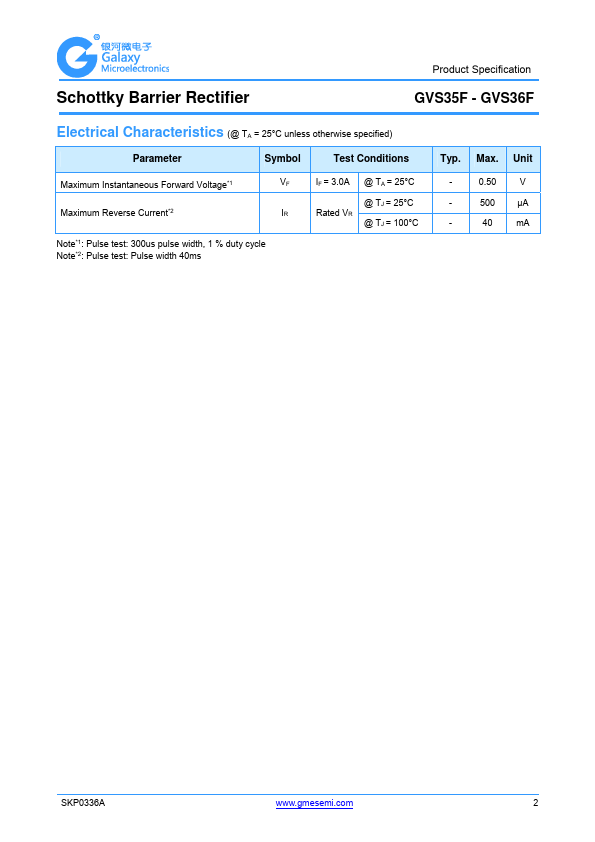

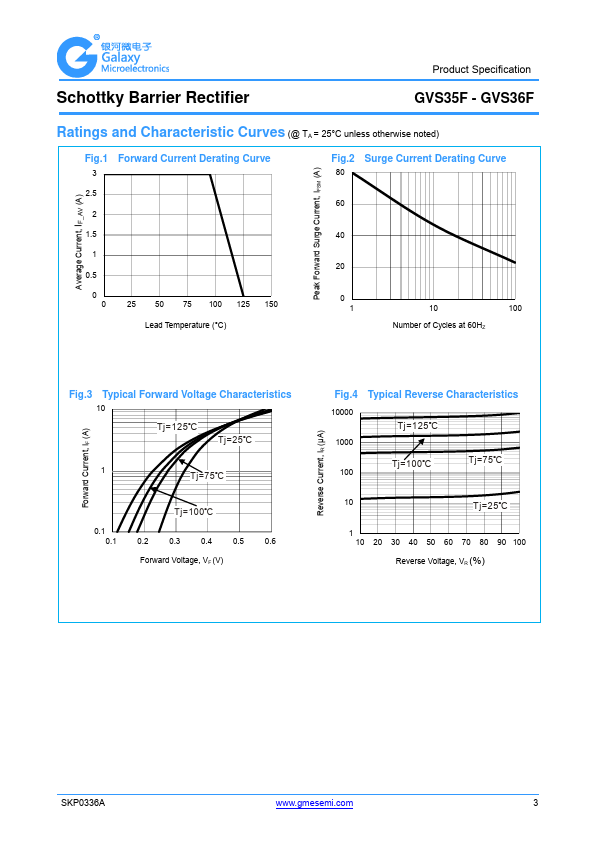

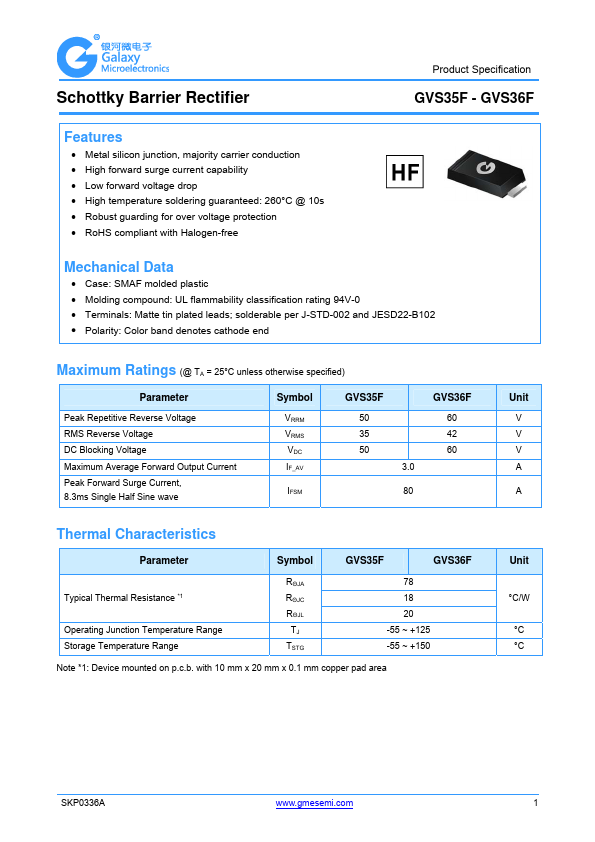

Additional preview pages of the GVS35F datasheet.

Product details

Features

Metal silicon junction, majority carrier conduction.
High surge capability.
High temperature soldering guaranteed: 260°C/10 seconds.
High current capability, low forward voltage drop.
RoHS Compliant Mechanical Data.
Case: SMAF molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Terminals: Solder plated, solderable per MIL- STD-202,Method 208.
Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless other.
