GVS36F - Schottky Barrier Rectifiers

Galaxy Microelectronics

Download the GVS36F datasheet PDF. This datasheet also includes the GVS35F variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

GVS36F schottky barrier rectifiers by Galaxy Microelectronics - Datasheet Preview — Note: The manufacturer provides a single datasheet file (GVS35F-GME.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	GVS36F
Manufacturer	Galaxy Microelectronics
File Size	372.71 KB
Description	Schottky Barrier Rectifiers
Datasheet	GVS36F Datasheet

Overview

Schottky Barrier Rectifiers Production specification GVS35F--GVS36F.

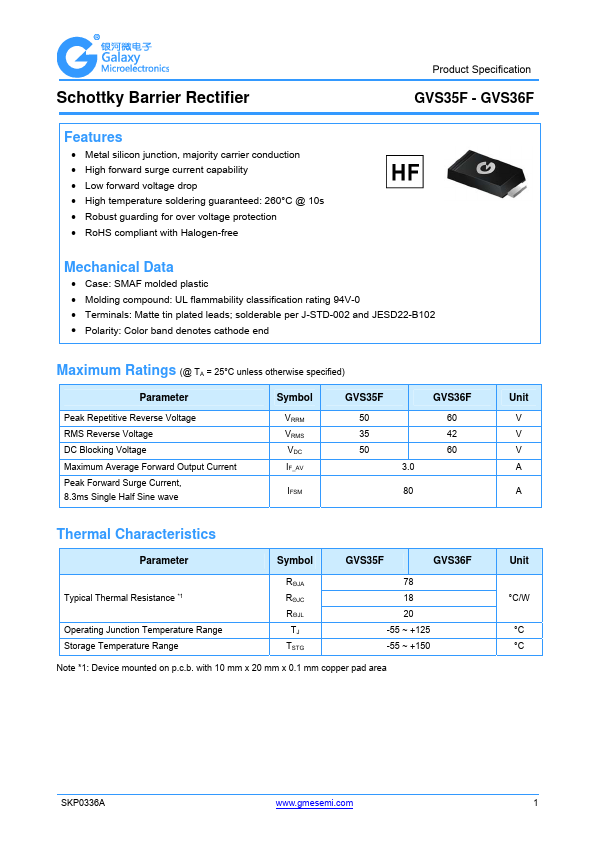

Key Features

Metal silicon junction, majority carrier conduction.
High surge capability.
High temperature soldering guaranteed: 260°C/10 seconds.
High current capability, low forward voltage drop.
RoHS Compliant Mechanical Data.
Case: SMAF molded plastic.
Molding compound, UL flammability classification rating 94V-0.
Terminals: Solder plated, solderable per MIL- STD-202,Method 208.
Polarity: Color band denotes cathode end Maximum Ratings (@TA = 25°C unless other.
