KTA1298 - Silicon Epitaxial Planar Transistor

Key Features

  • z High DC current gain:hFE=100-320. z Low saturation voltage:VCE(sat)=-0.4V(Max) (IC=-500mA,IB=-20mA). z Suitable for driver stage of small motor. z Complementary to KTC3265. z Small package. Pb Lead-free.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KTA1298 PNP Transistors Kexin
KTA1298 EPITAXIAL PLANAR PNP TRANSISTOR KEC
KTA1298 PNP Silicon Transistors WEITRON
KTA1298 Silicon PNP transistor BLUE ROCKET ELECTRONICS
KTA1298 PNP Transistor JinYu

Other Datasheets by Galaxy Microelectronics

Part Number Description
KTA1273 PNP Silicon Epitaxial Planar Transistor
KTA1275 PNP Silicon Epitaxial Planar Transistor
KTA1505 PNP Silicon Epitaxial Planar Transistor
KTA1663 PNP Silicon Epitaxial Planar Transistor
KTA1664 PNP Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

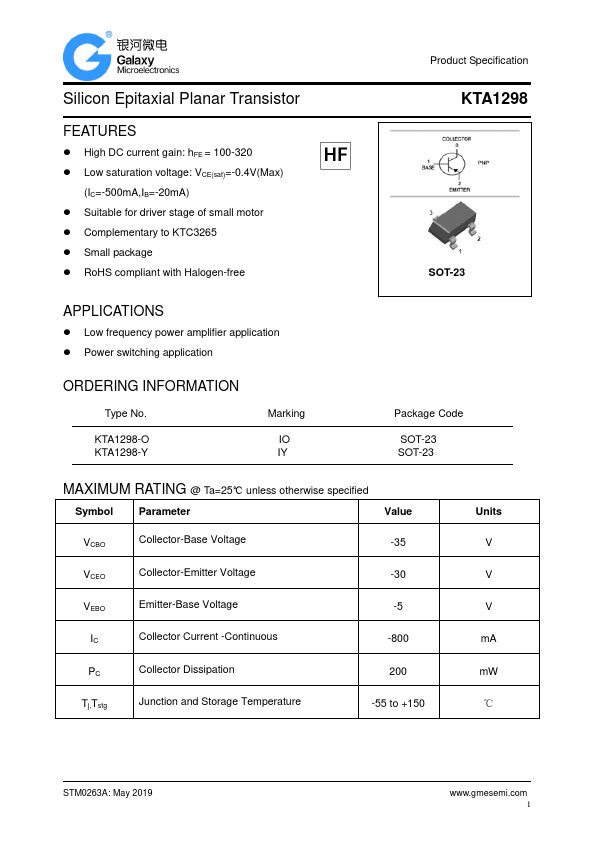

Production specification Silicon Epitaxial Planar Transistor FEATURES z High DC current gain:hFE=100-320. z Low saturation voltage:VCE(sat)=-0.4V(Max) (IC=-500mA,IB=-20mA). z Suitable for driver stage of small motor. z Complementary to KTC3265. z Small package. Pb Lead-free APPLICATIONS z Low frequency power amplifier application. z Power switching application. ORDERING INFORMATION Type No.
