Galaxy Century Microelectronics MBR0520
Schottky Barrier Diode
| Part No. | MBR0520 |
|---|---|
| Datasheet | MBR0520 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Schottky Barrier Diode |
| Buy | Stock & Price |
FEATURES

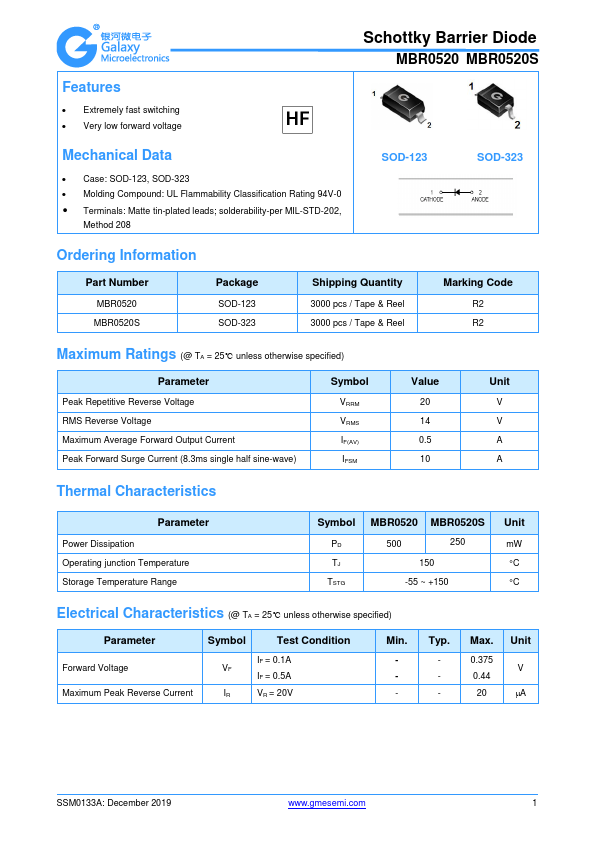

● Extremely fast switching● Very low forward voltage Schottky Barrier Diode MBR0520 MBR0520S
MECHANICAL DATA

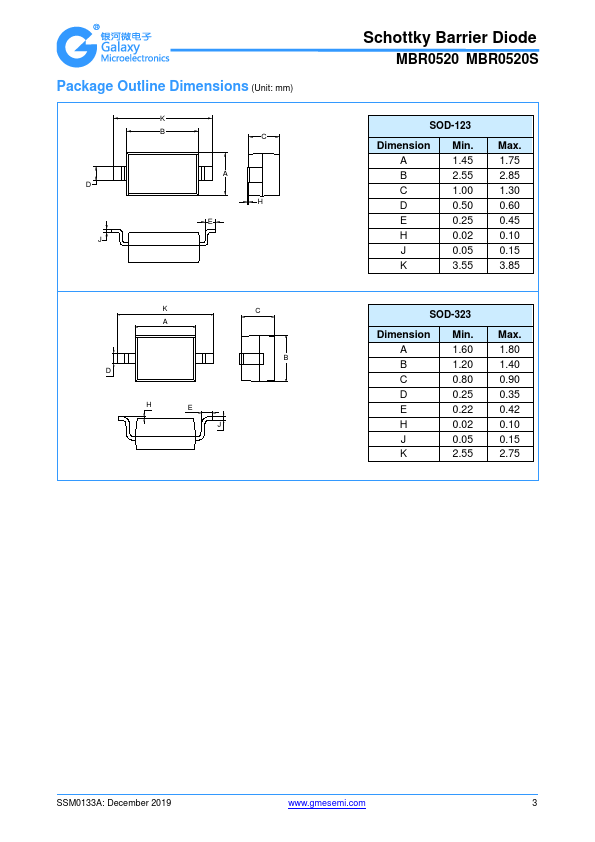

● Case: SOD-123, SOD-323● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOD-123 SOD-323 Ordering Information Part Number MBR0520 MBR0520S Package SOD-123 SOD-323 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code R2 R2
MAXIMUM RATINGS
(@ TA = 25℃ unless otherwise specified) Parameter Peak Repetitive Reverse Voltage RMS Reverse Voltage Maximum Average Forward Output Current Peak Forward Surge Current (8.3ms single half sine-wave) Symbol VRRM VRMS IF(AV) IFSM Value 20 14 0.5 10 Unit V V A A Thermal Characteristics Parameter Power Dissipation Operating junction Temperature Storage Temperature Range Symbol PD TJ TSTG MBR0520 MBR0520S 500 250 150 -55 ~ +150 Unit mW °C °CELECTRICAL CHARACTERISTICS

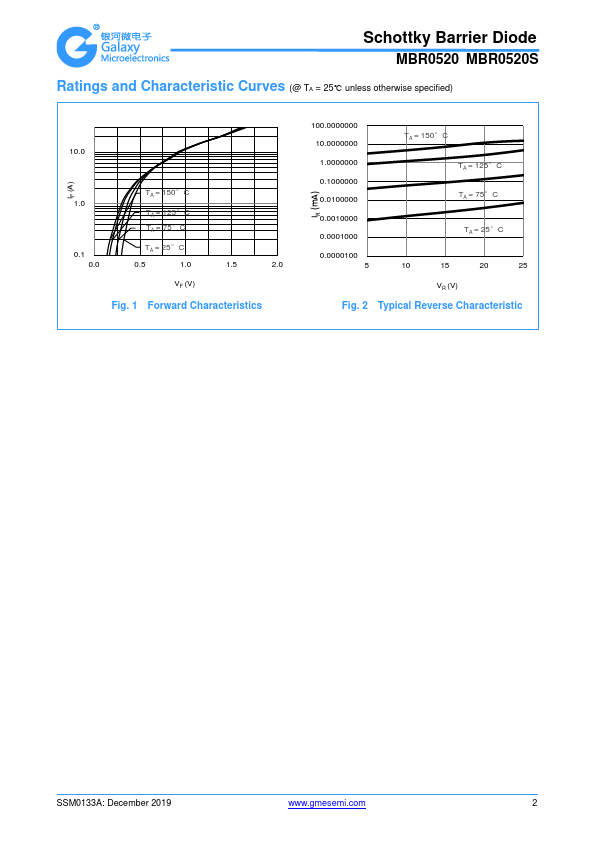

(@ TA = 25℃ unless otherwise specified) Parameter Forward Voltage Maximum Peak Reverse Current Symbol Test Condition IF = 0.1A VF IF = 0.5A IR VR = 20V Min. - Typ. - Max.
