MBR160
MBR160 is Schottky Power Rectifier manufactured by Galaxy Microelectronics.
FEATURES
- Low Reverse Current.
- Low Power Loss/High Efficiency.
- Low Stored Charge,Majority Carrier Conduction.
- Highly Stable Oxide Passivated Junction.
Product Specification
ORDERING INFORMATION
Type No. MBR160
Marking X6

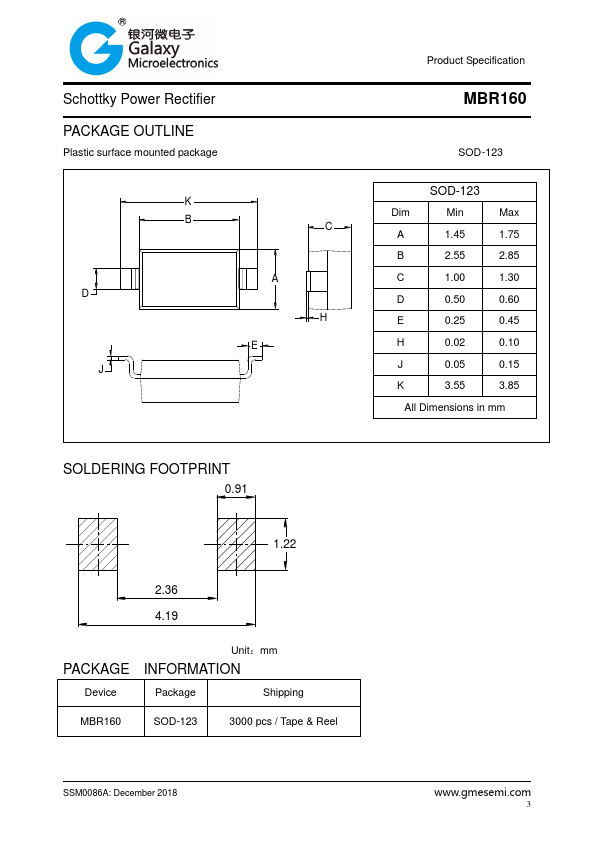

SOD-123
Package Code SOD-123
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Rating
Symbol
Value
Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage
VRRM
VRWM
DC Reverse Voltage
RMS Reverse Voltage
VR(RMS)
Average Rectified Forward Current (VR(equiv)≤0.2VR,TL=90℃,RθJA=80℃/W,TA=55℃)
Non- Repetitive Peak Surge Current
( Surge applied at rate load current,halfwave,single phase,60 Hz)
IFSM
Storage Temperature
Tstg
-65 to +150 ℃
Operating Junction Temperature(Forward Current Applied)
Tj
-55 to +125 ℃
ELECTRICAL CHARACTERISTICS @ Ta=25℃ unless otherwise specified
Characteristic
Symbol Test...
