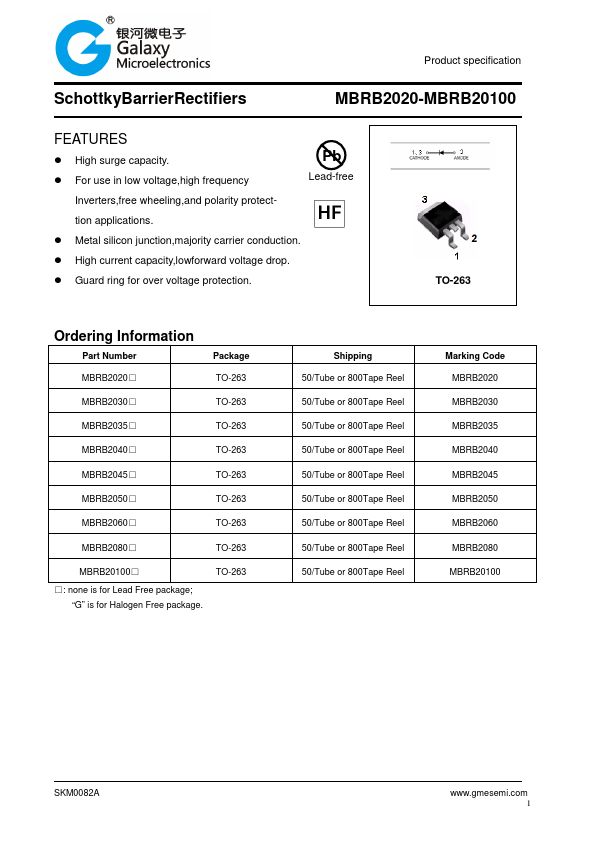

MBRB2035
MBRB2035 is Schottky Barrier Rectifiers manufactured by Galaxy Microelectronics.
- Part of the MBRB2020 comparator family.
- Part of the MBRB2020 comparator family.
FEATURES
- High surge capacity.
- For use in low voltage,high frequency
Pb
Lead-free
Inverters,free wheeling,and polarity protect- tion applications.
- Metal silicon junction,majority carrier conduction.
- High current capacity,lowforward voltage drop.
- Guard ring for over voltage protection.
TO-263
Ordering Information
Part Number MBRB2020-
Package TO-263
MBRB2030-
TO-263
MBRB2035-
TO-263
MBRB2040-
TO-263
MBRB2045-
TO-263
MBRB2050-
TO-263
MBRB2060-
TO-263
MBRB2080-
TO-263
MBRB20100-
TO-263
- : none is for Lead Free package; “G” is for Halogen Free package.
Shipping 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel
Marking Code MBRB2020 MBRB2030 MBRB2035 MBRB2040 MBRB2045 MBRB2050 MBRB2060 MBRB2080 MBRB20100
SKM0082A
.gmesemi. 1
Product specification
Schottky Barrier Rectifiers
MBRB2020-MBRB20100
MAXIMUM RATING operating temperature range applies unless otherwise specified
Symbol Parameter
MBR...
