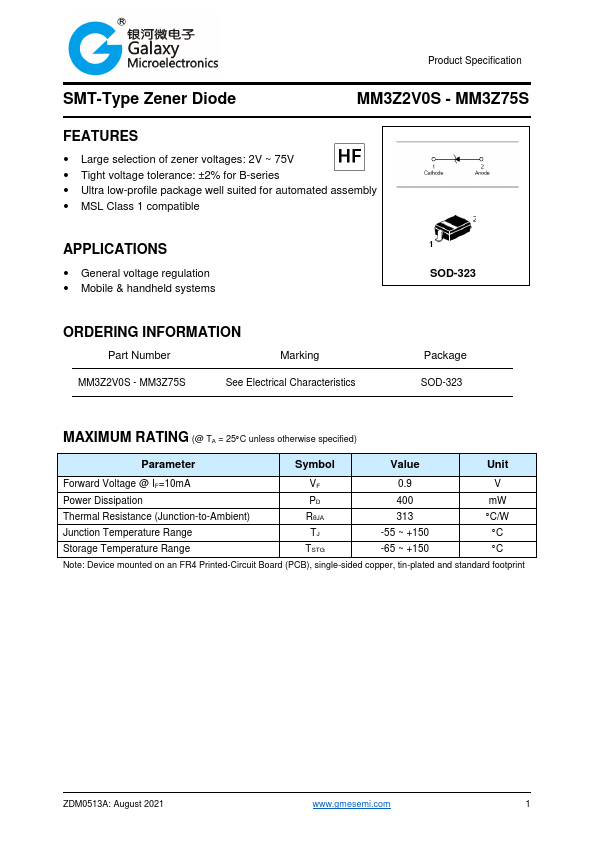

MM3Z39S
MM3Z39S is SMT-Type Zener Diode manufactured by Galaxy Microelectronics.
FEATURES
- Large selection of zener voltages: 2V ~ 75V
- Tight voltage tolerance: ±2% for B-series
- Ultra low-profile package well suited for automated assembly
- MSL Class 1 patible
APPLICATIONS
- General voltage regulation
- Mobile & handheld systems
SOD-323
ORDERING INFORMATION
Part Number
Marking
MM3Z2V0S
- MM3Z75S

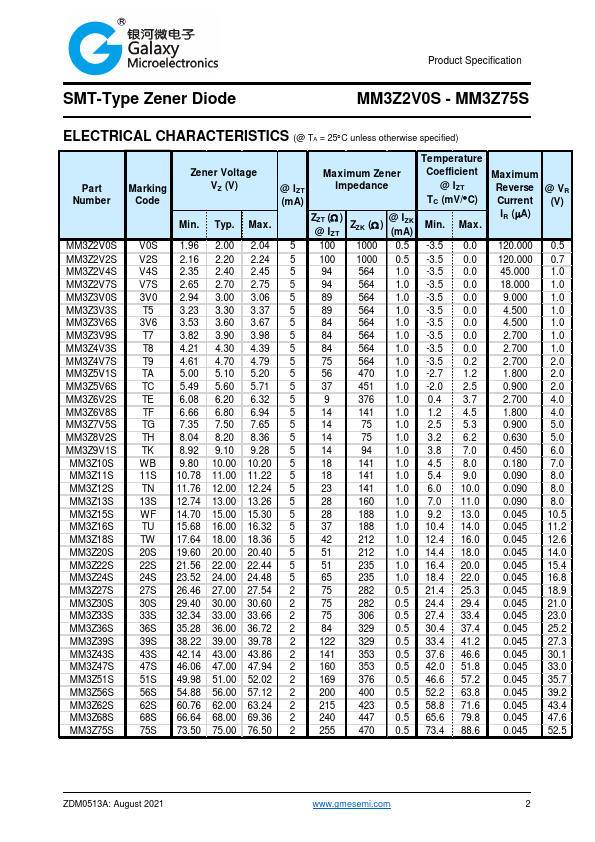

See Electrical Characteristics
Package
SOD-323
MAXIMUM RATING (@ TA = 25°C unless otherwise specified)
Parameter
Symbol
Value
Unit
Forward Voltage @ IF=10m A
Power Dissipation
400 m W
Thermal Resistance (Junction-to-Ambient)
RθJA
°C/W
Junction Temperature Range
-55 ~ +150
°C
Storage Temperature Range
TSTG
-65 ~ +150
°C
Note: Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard...
