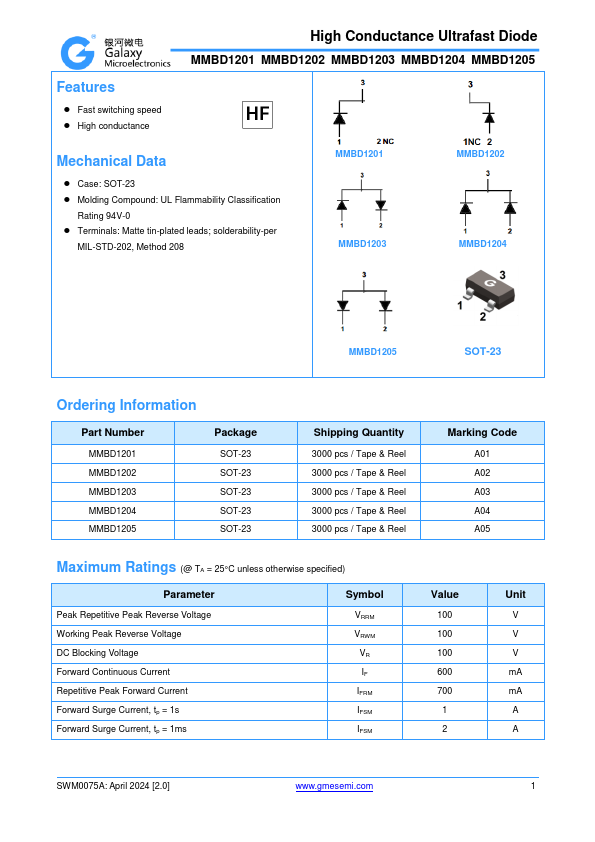

Galaxy Century Microelectronics MMBD1202
High Conductance Ultrafast Diode
| Part No. | MMBD1202 |
|---|---|
| Datasheet | MMBD1202 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | High Conductance Ultrafast Diode |
| Buy | Stock & Price |
FEATURES
● Fast switching speed● High conductance High Conductance Ultrafast Diode MMBD1201 MMBD1202 MMBD1203 MMBD1204 MMBD1205
MECHANICAL DATA
● Case: SOT-23● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 MMBD1201 MMBD1203 MMBD1202 MMBD1204 MMBD1205 SOT-23 Ordering Information Part Number MMBD1201 MMBD1202 MMBD1203 MMBD1204 MMBD1205 Package SOT-23 SOT-23 SOT-23 SOT-23 SOT-23 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code A01 A02 A03 A04 A05
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Forward Continuous Current Repetitive Peak Forward Current Forward Surge Current, tp = 1s Forward Surge Current, tp = 1ms Symbol VRRM VRWM VR IF IFRM IFSM IFSM Value 100 100 100 600 700 1 2 Unit V V V mA m...
