Galaxy Century Microelectronics MMBT2907AT
PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR
| Part No. | MMBT2907AT |
|---|---|
| Datasheet | MMBT2907AT Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR |
| Buy | Stock & Price |

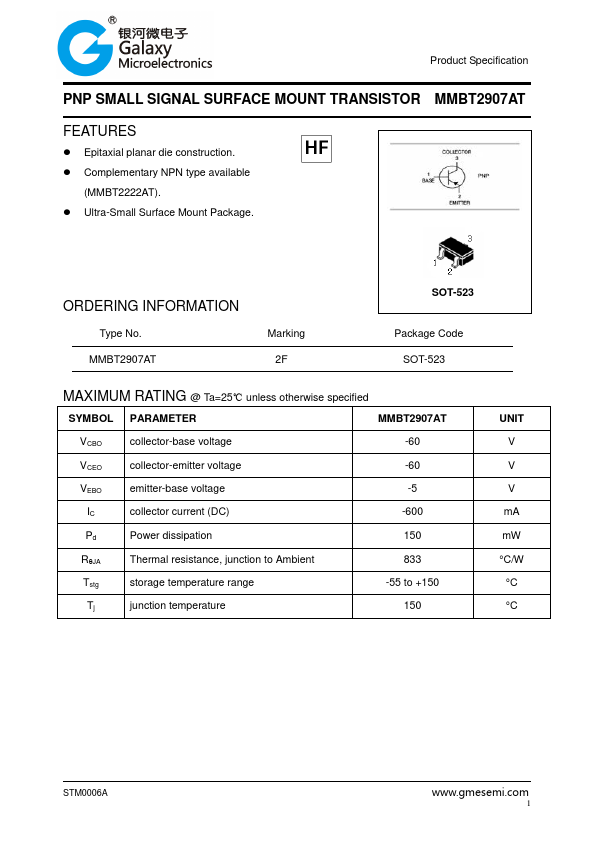

FEATURES
● Epitaxial planar die construction.● Complementary NPN type available (MMBT2222AT).
● Ultra-Small Surface Mount Package. ORDERING INFORMATION Type No. MMBT2907AT Marking 2F SOT-523 Package Code SOT-523 MAXIMUM RATING @ Ta=25℃ unless otherwise specified SYMBOL PARAMETER MMBT2907AT VCBO collector-base voltage -60 VCEO collector-emitter voltage -60 VEBO emitter-base voltage -5 IC collector current (DC) -600 Pd Power dissipation 150 RθJA Thermal resistance, junction to Ambient Tstg storage temperature range 833 -55 to +150 Tj junction temperature 150 UNIT V V V mA mW °C/W °C °C STM0006A 1 Product Specification PNP SMALL SIGNAL SURFACE MOUNT TRANSISTOR MMBT2907AT

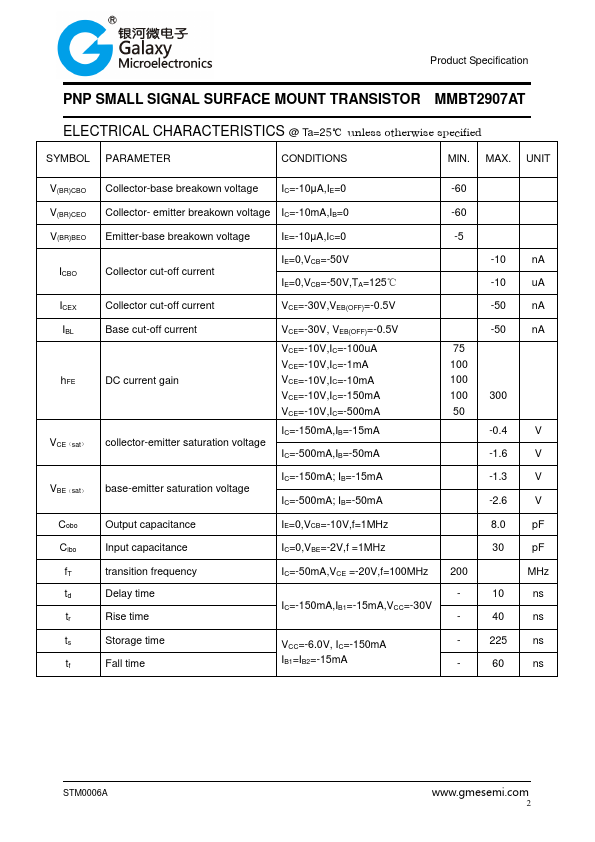

ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT V(BR)CBO Collector-base breakown voltage IC=-10μA,IE=0 -60 V(BR)CEO Collector- emitter breakown voltage IC=-10mA,IB=0 -60 V(BR)BEO Emitter-base breakown voltage IE=-10μA,IC=0 -5 ICBO Collector cut-off current IE=0,VC...
