MMBT5401 - PNP Silicon Epitaxial Planar Transistor

Key Features

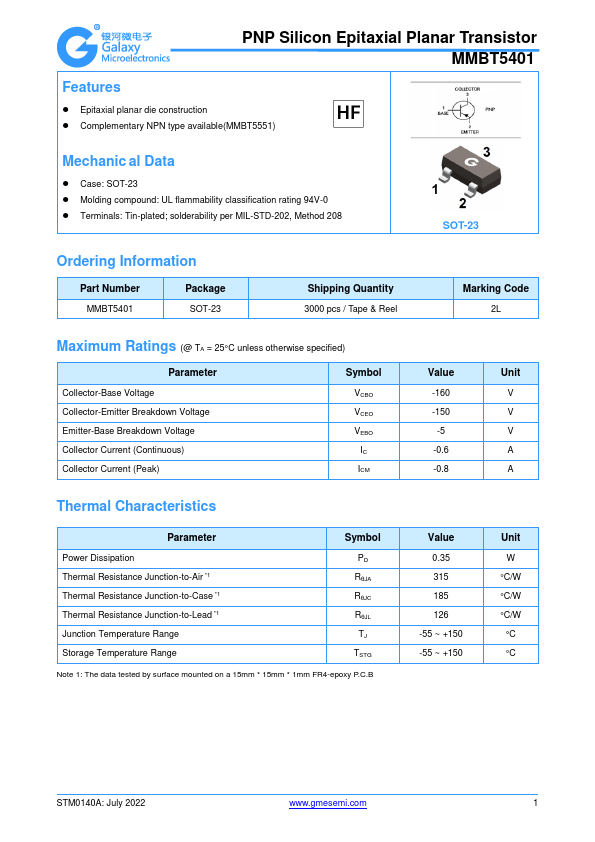

  • Epitaxial planar die construction.
  • Complementary NPN type available(MMBT5551) Mechanic al Data.
  • Case: SOT-23.
  • Molding compound: UL flammability classification rating 94V-0.
  • Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 Ordering Information Part Number MMBT5401 Package SOT-23 Shipping Quantity 3000 pcs / Tape & Reel SOT-23 Marking Code 2L Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Collector-Base Voltage Collector-Emitter.
