MMBTA42 - NPN High Voltage Amplifier

Key Features

  • Epitaxial planar die construction.
  • Complementary PNP type available Pb Lead-free (MMBTA92).
  • Ideal for medium power amplification and switching. MMBTA42.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBTA42 Surface mount High Voltage Transistors Diotec
MMBTA42 Silicon NPN transistor BLUE ROCKET ELECTRONICS
MMBTA42 NPN Transistor HOTTECH
MMBTA42 NPN Transistors Kexin
MMBTA42 General Purpose NPN Silicon Transistor SeCoS

Other Datasheets by Galaxy Microelectronics

Part Number Description
MMBTA43 NPN High Voltage Amplifier
MMBTA05 NPN General Purpose Transistor
MMBTA06 NPN General Purpose Transistor
MMBTA13 NPN Darlington Amplifier Transistor
MMBTA14 NPN Darlington Amplifier Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

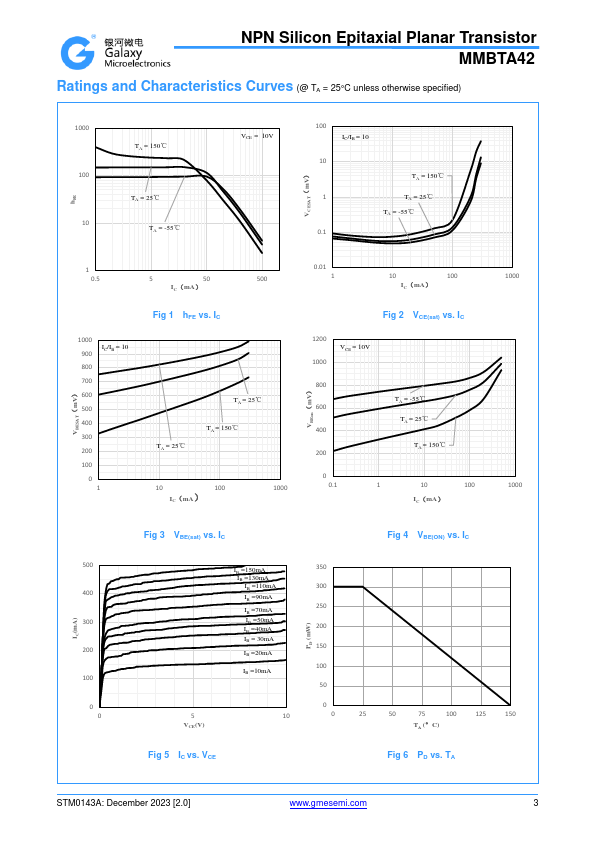

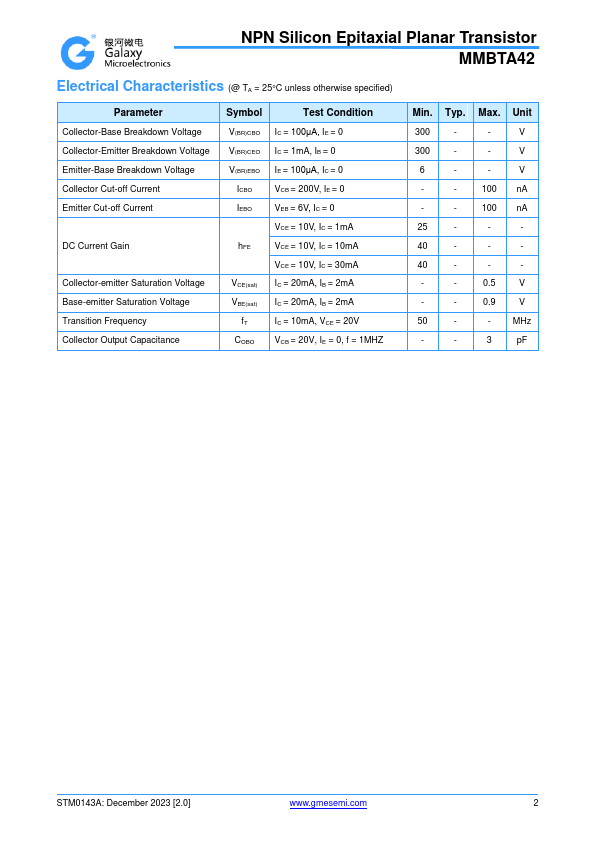

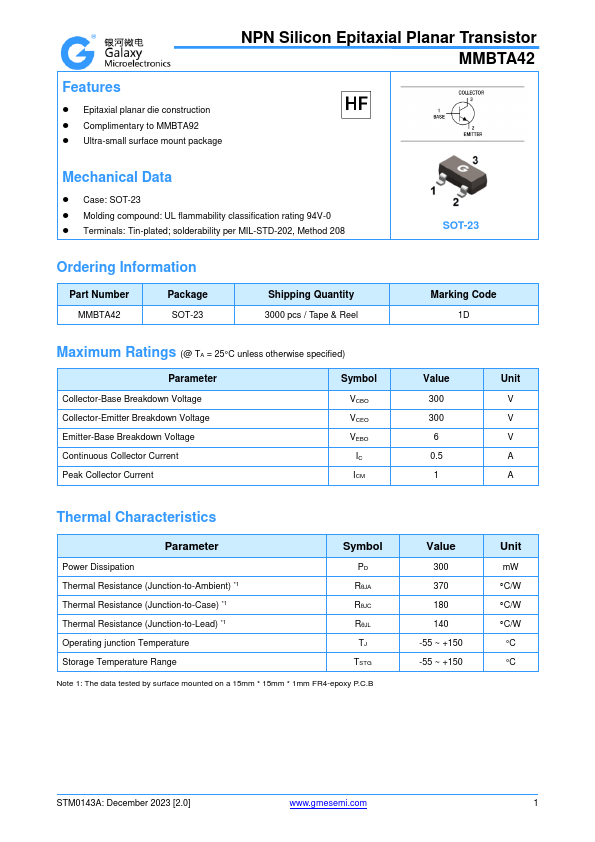

Production specification NPN High Voltage Amplifier FEATURES  Epitaxial planar die construction.  Complementary PNP type available Pb Lead-free (MMBTA92).  Ideal for medium power amplification and switching. MMBTA42 APPLICATIONS  NPN High voltage amplifier. ORDERING INFORMATION Type No. Marking MMBTA42 1D SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter VCBO Collector-base voltage 300 Value VCEO Collector-emitter voltage 300 VEBO IC PD RθJA Tj ,Tstg Emitter-base voltage Collector current (DC) Total device dissipation Thermal resistance,junction to ambient Junction and storage temperature 6 0.2 0.35 357 -55 to +150 UNIT V V V A W °C/W °C C076 Rev.A www.gmesemi.
