MMBTA43 - NPN High Voltage Amplifier

Key Features

  • z Epitaxial planar die construction. z Ideal for medium power amplification and switching. Pb Lead-free MMBTA43.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMBTA43 NPN Plastic Encapsulated Transistor SeCoS
MMBTA43 Surface mount High Voltage Transistors Diotec
MMBTA43 High-Voltage NPN Transistor WEITRON
MMBTA43 NPN Silicon High Voltage Transistors SEMTECH
MMBTA43 NPN Transistor JinYu

Other Datasheets by Galaxy Microelectronics

Part Number Description
MMBTA42 NPN High Voltage Amplifier
MMBTA05 NPN General Purpose Transistor
MMBTA06 NPN General Purpose Transistor
MMBTA13 NPN Darlington Amplifier Transistor
MMBTA14 NPN Darlington Amplifier Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

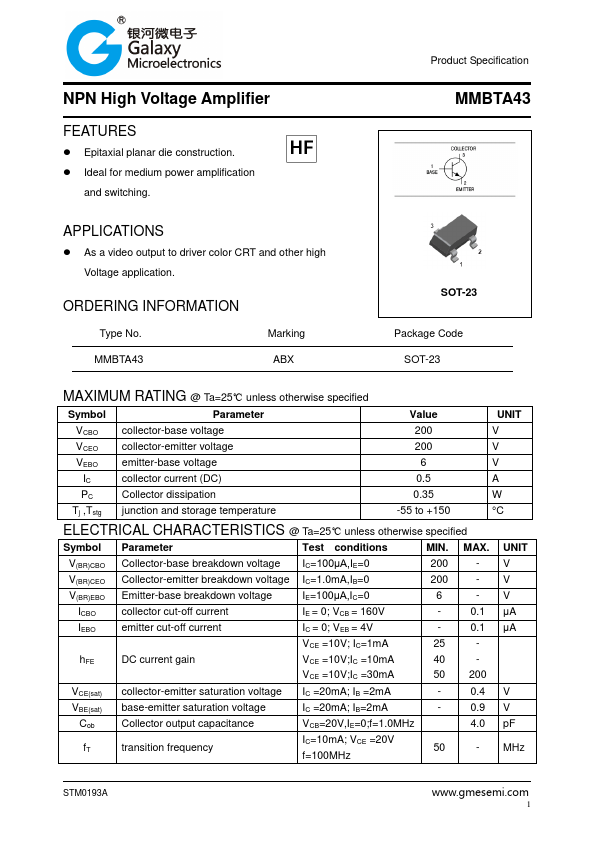

Production specification NPN High Voltage Amplifier FEATURES z Epitaxial planar die construction. z Ideal for medium power amplification and switching. Pb Lead-free MMBTA43 APPLICATIONS z As a video output to driver color CRT and other high Voltage application. ORDERING INFORMATION Type No. Marking MMBTA43 ABX SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value UNIT VCBO VCEO VEBO IC PC Tj ,Tstg collector-base voltage collector-emitter voltage emitter-base voltage collector current (DC) Collector dissipation junction and storage temperature 200 200 6 0.2 0.
