MUR3040 Datasheet | Galaxy Microelectronics

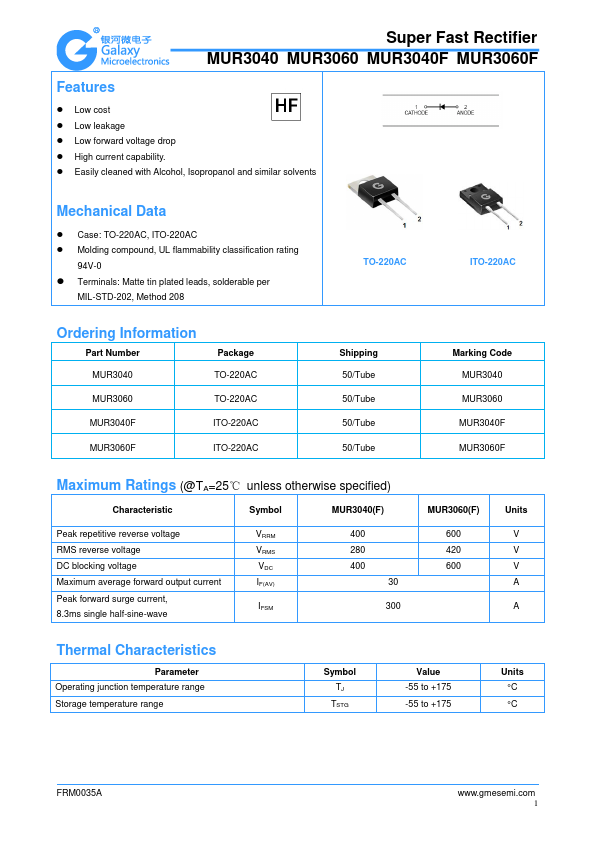

Features - Low cost - Low leakage - Low forward voltage drop - High current capability. - Easily cleaned with Alcohol, Isopropanol and similar solvents Mechanical Data - Case: TO-220AC, ITO-220AC - Molding pound, UL flammability classification rating 94V-0 - Terminals: Matte tin plated leads, solderable per MIL-STD-202, Method 208 Ordering Information Part Number MUR3040 Package TO-220AC MUR3060 TO-220AC MUR3040F ITO-220AC MUR3060F ITO-220AC TO-220AC Shipping 50/Tube 50/Tube 50/Tube 50/Tube ITO-220AC Marking Code MUR3040 MUR3060 MUR3040F MUR3060F Maximum Ratings (@TA=25℃ unless otherwise specified) Characteristic Symbol MUR3040(F) Peak repetitive reverse voltage RMS reverse voltage DC blocking voltage Maximum average forward output current Peak forward surge current, 8.3ms single half-sine-wave VRRM VRMS VDC IF(AV) IFSM 400 280 400 MUR3060(F) 600 420 600 Units Thermal Characteristics...
