PS1117-2.5 Datasheet

Manufacturer: Galaxy Microelectronics

This datasheet includes multiple variants, all published together in a single manufacturer document.

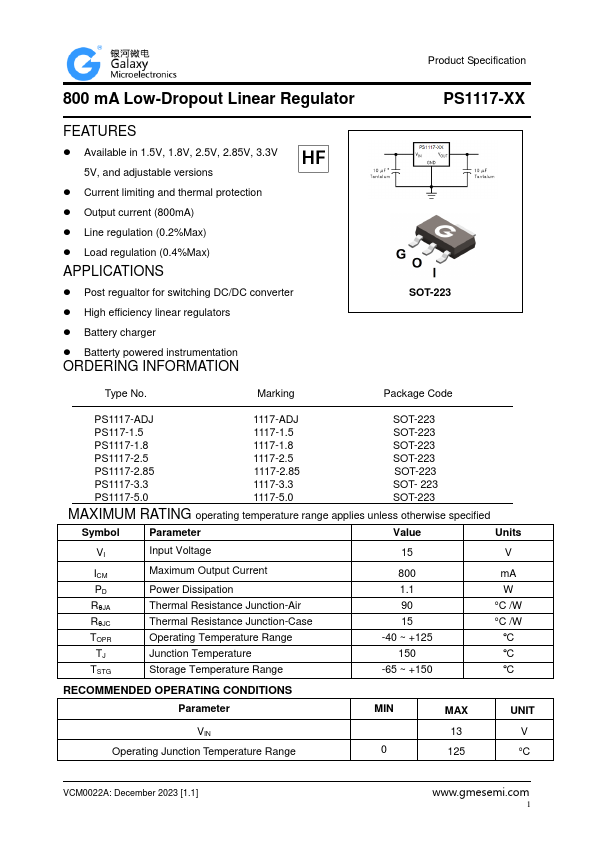

PS1117-2.5 datasheet preview

Datasheet Details

Part number PS1117-2.5
Datasheet PS1117-2.5 PS1117-ADJ Datasheet (PDF)
File Size 310.77 KB
Manufacturer Galaxy Microelectronics
Description 800mA Low-Dropout Linear Regulator

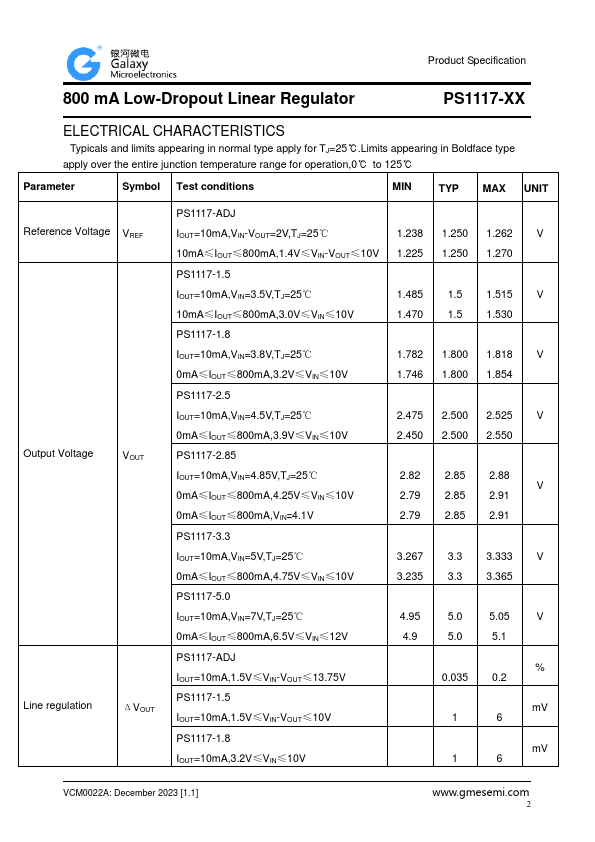

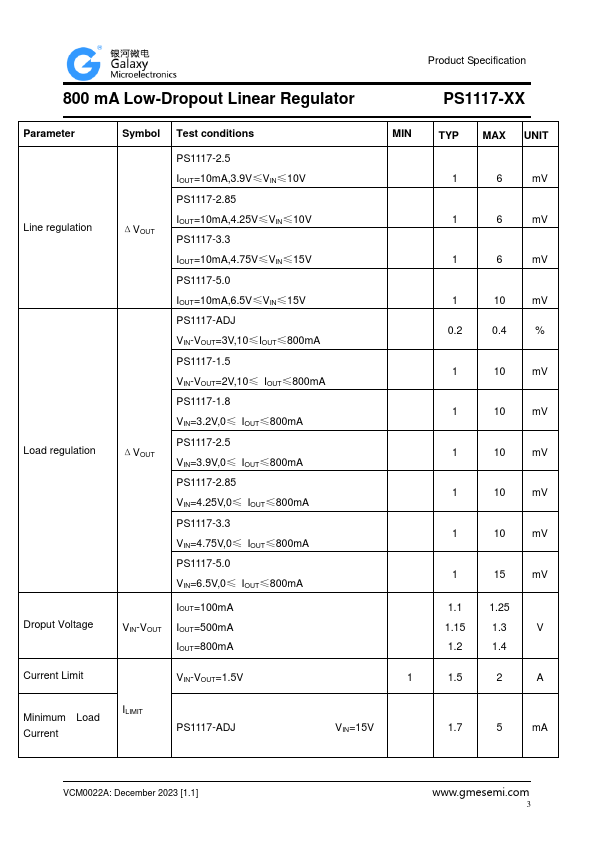

PS1117-2.5 page 2 PS1117-2.5 page 3

PS1117-2.5 Overview

Product Specification 800 mA Low-Dropout Linear Regulator PS1117-XX.

PS1117-2.5 Key Features

  • Available in 1.5V, 1.8V, 2.5V, 2.85V, 3.3V 5V, and adjustable versions
  • Current limiting and thermal protection
  • Output current (800mA)
  • Line regulation (0.2%Max)
  • Load regulation (0.4%Max)

PS1117-2.5 Applications

  • Post regualtor for switching DC/DC converter
