PS1117-3.3 - 800mA Low-Dropout Linear Regulator

This page provides the datasheet information for the PS1117-3.3, a member of the PS1117-ADJ 800mA Low-Dropout Linear Regulator family.

Features

  • Available in 1.5V, 1.8V, 2.5V, 2.85V, 3.3V 5V, and adjustable versions.
  • Current limiting and thermal protection.
  • Output current (800mA).
  • Line regulation (0.2%Max).
  • Load regulation (0.4%Max).

📥 Download Datasheet

Datasheet preview – PS1117-3.3

Datasheet Details

Part number PS1117-3.3
Manufacturer Galaxy Microelectronics
File Size 310.77 KB
Description 800mA Low-Dropout Linear Regulator
Datasheet download datasheet PS1117-3.3 Datasheet

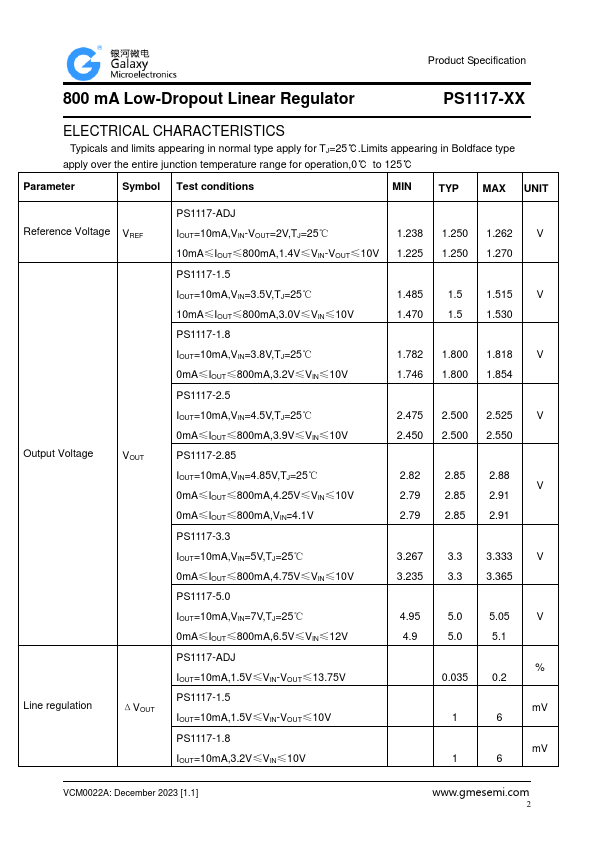

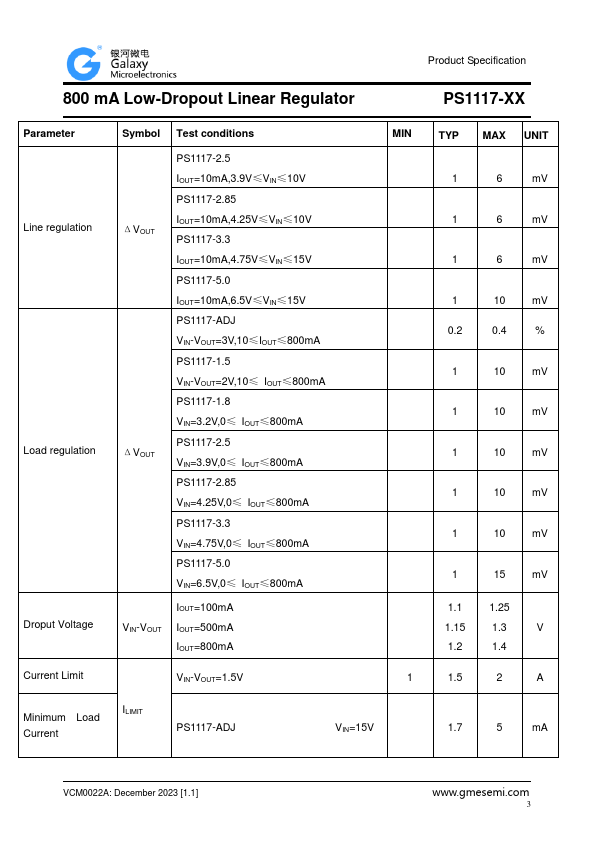

Additional preview pages of the PS1117-3.3 datasheet.

📁 Similar Datasheet

  • PS11011 - Application Specific Intelligent Power-Module (Powerex Power)
  • PS11012 - Application Specific Intelligent Power-Module (Powerex Power)
  • PS11013 - Application Specific Intelligent Power-Module (Powerex Power)
  • PS11014 - Application Specific Intelligent Power-Module (Powerex Power)
  • PS11015 - Application Specific Intelligent Power-Module (Powerex Power)
  • PS11016 - Application Specific Intelligent Power-Module (Powerex Power)
  • PS11016 - IGBT IPM (Mitsubishi Electric Semiconductor)
  • PS11017 - Application Specific Intelligent Power-Module (Powerex Power)
  • PS1102HA - Surface Mount Phototransistor (Stanley Electric)
  • PS11032 - Intellimod Module Application Specific IPM (Powerex Power)
Other Datasheets by GME

Full PDF Text Transcription

Click to expand full text

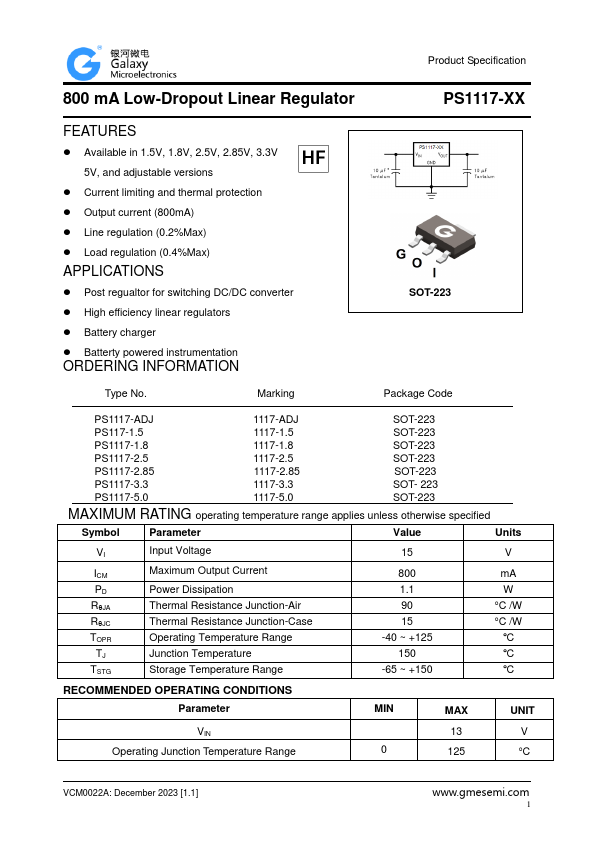

Product Specification 800 mA Low-Dropout Linear Regulator PS1117-XX FEATURES  Available in 1.5V, 1.8V, 2.5V, 2.85V, 3.3V 5V, and adjustable versions  Current limiting and thermal protection  Output current (800mA)  Line regulation (0.2%Max)  Load regulation (0.4%Max) APPLICATIONS  Post regualtor for switching DC/DC converter  High efficiency linear regulators  Battery charger  Batterty powered instrumentation ORDERING INFORMATION SOT-223 Type No. Marking Package Code PS1117-ADJ PS117-1.5 PS1117-1.8 PS1117-2.5 PS1117-2.85 PS1117-3.3 PS1117-5.0 1117-ADJ 1117-1.5 1117-1.8 1117-2.5 1117-2.85 1117-3.3 1117-5.
