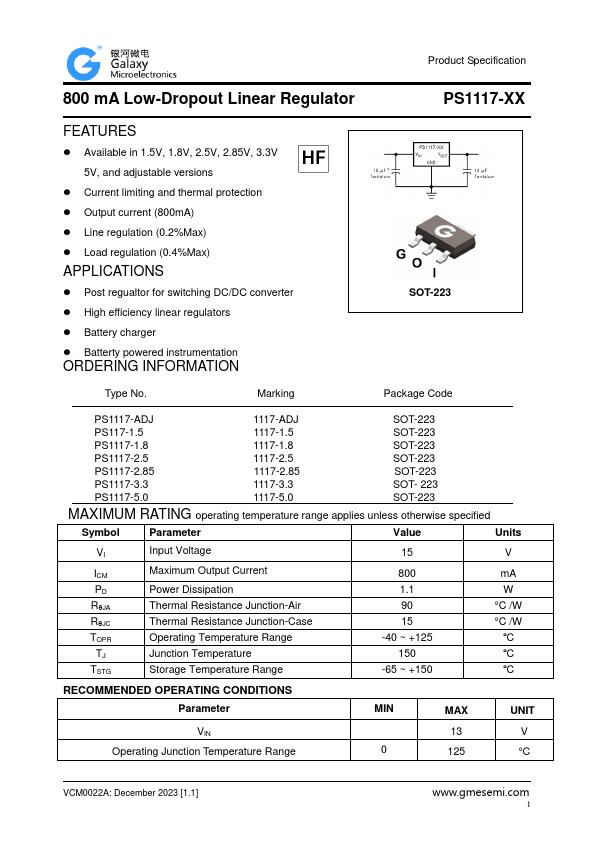

PS117-1.5
FEATURES
- Available in 1.5V, 1.8V, 2.5V, 2.85V, 3.3V 5V, and adjustable versions
- Current limiting and thermal protection
- Output current (800m A)
- Line regulation (0.2%Max)
- Load regulation (0.4%Max)
APPLICATIONS
- Post regualtor for switching DC/DC converter
- High efficiency linear regulators
- Battery charger
- Batterty powered instrumentation
ORDERING INFORMATION
SOT-223
Type No.
Marking
Package Code
PS1117-ADJ PS117-1.5 PS1117-1.8 PS1117-2.5 PS1117-2.85 PS1117-3.3 PS1117-5.0
1117-ADJ 1117-1.5 1117-1.8 1117-2.5 1117-2.85 1117-3.3 1117-5.0
SOT-223 SOT-223 SOT-223 SOT-223 SOT-223 SOT- 223 SOT-223
MAXIMUM RATING operating temperature range applies unless otherwise specified
Symbol
Parameter
Value
Units
Input Voltage
ICM PD RθJA RθJC TOPR TJ TSTG
Maximum Output Current
Power Dissipation Thermal Resistance Junction-Air Thermal Resistance Junction-Case Operating Temperature Range Junction Temperature Storage Temperature Range
800 1.1 90 15 -40 ~ +125 150...
