SM12 - TVS DIODE ARRAY

Product Overview

GME

📥 Download Datasheet

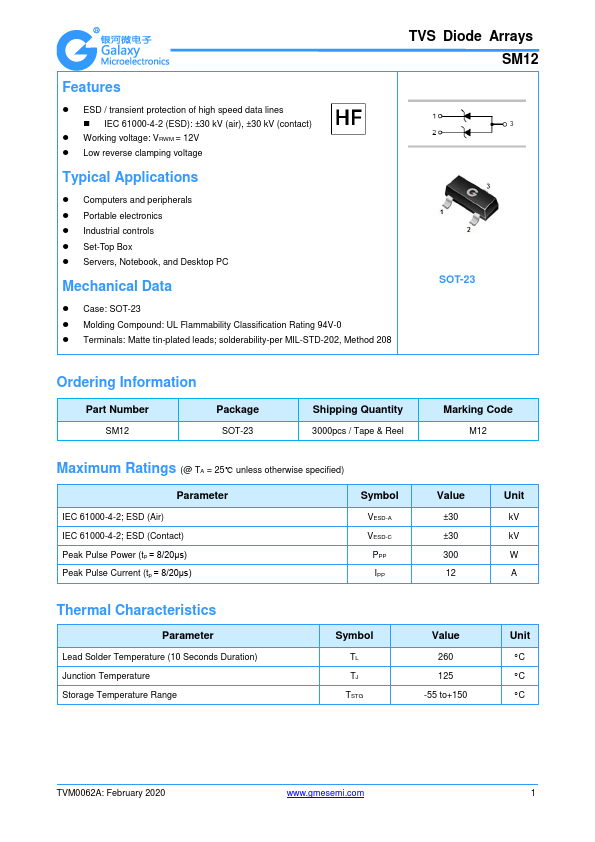

SM12 TVS DIODE ARRAY by GME - Datasheet Preview — Datasheet preview – SM12

Datasheet Details

Part number	SM12
Manufacturer	GME
File Size	101.65 KB
Description	TVS DIODE ARRAY
Datasheet	SM12 Datasheet

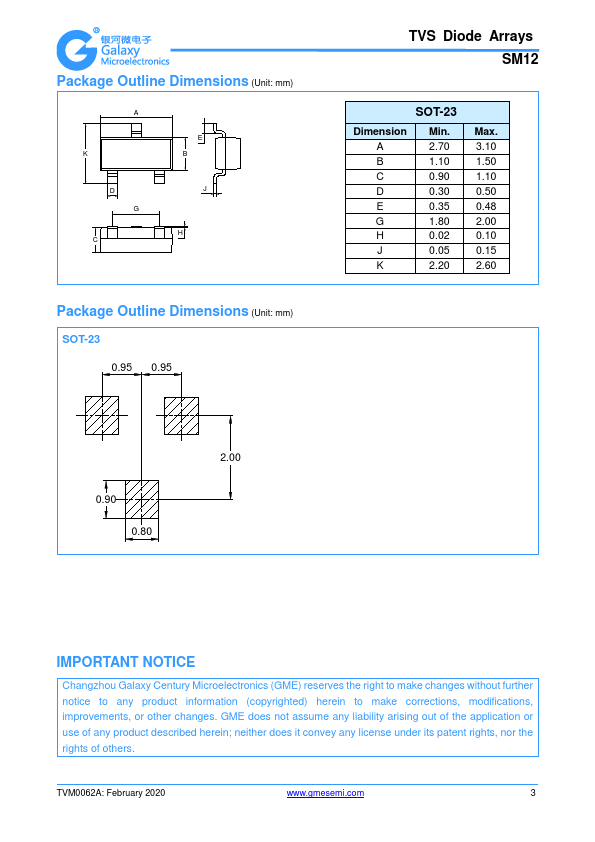

Additional preview pages of the SM12 datasheet.

Product details

Features

z 300 watts peak pulse power. (tp=8/20us) z Transient protection for data&power lines to Pb Lead-free IEC 61000-4-2(ESD)15Kv(air),8kV(contanct) IEC 61000-4-4(EFT)40A(tp=5/50ns) IEC 61000-4-5(Lighting)12A(tp=1.2/50us) z Protects one bidirectional line or two unidirectional lines. z Working Voltage: 12V. z Low clamping voltage. z Solid-state silicon avalanche technology. SM12 SOT-23.
