SM15 - TVS DIODE ARRAY

Product Overview

GME

📥 Download Datasheet

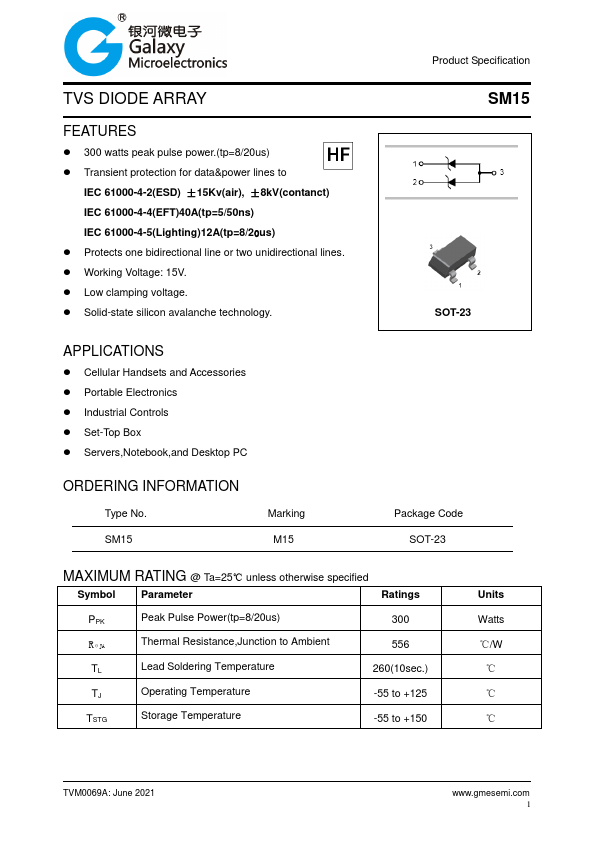

SM15 TVS DIODE ARRAY by GME - Datasheet Preview — Datasheet preview – SM15

Datasheet Details

Part number	SM15
Manufacturer	GME
File Size	102.05 KB
Description	TVS DIODE ARRAY
Datasheet	SM15 Datasheet

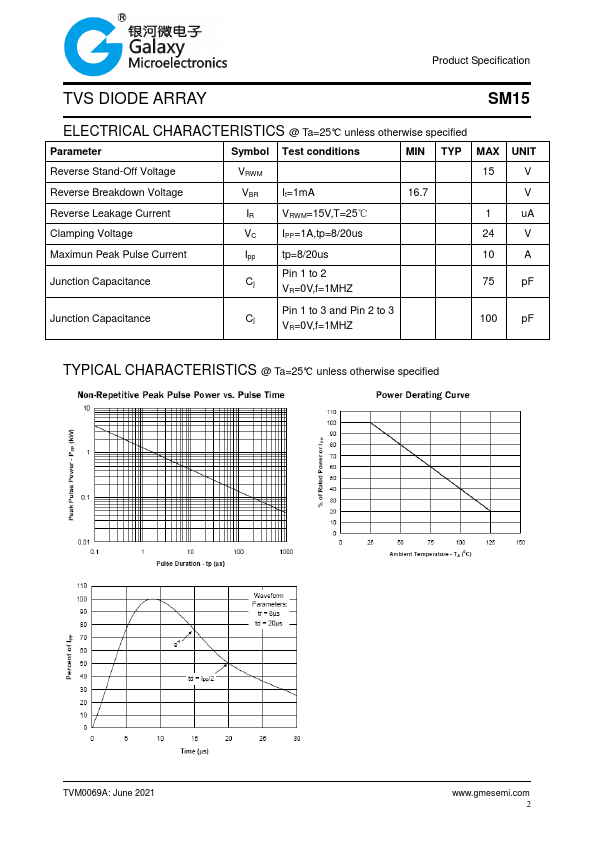

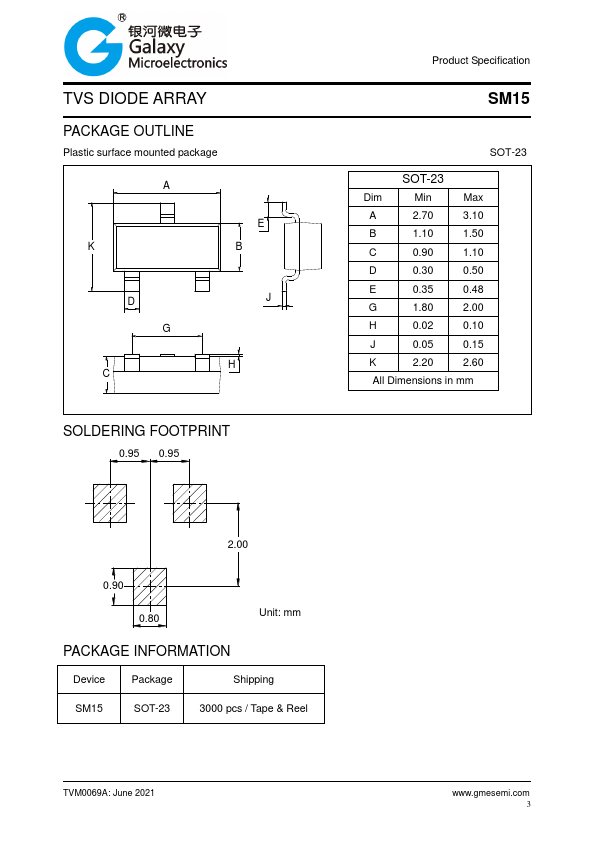

Additional preview pages of the SM15 datasheet.

Product details

Features

z 300 watts peak pulse power. (tp=8/20us) z Transient protection for data&power lines to Pb Lead-free IEC 61000-4-2(ESD) ±15Kv(air), ±8kV(contanct) IEC 61000-4-4(EFT)40A(tp=5/50ns) IEC 61000-4-5(Lighting)12A(tp=8/20us) z Protects one bidirectional line or two unidirectional lines. z Working Voltage: 15V. z Low clamping voltage. z Solid-state silicon avalanche technology. SM15 SOT-23.
