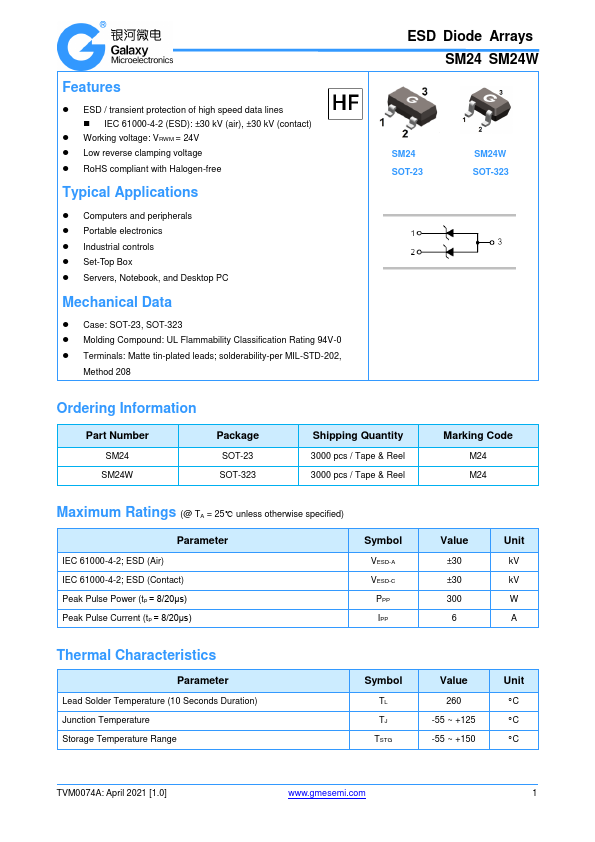

Galaxy Century Microelectronics SM24
ESD Diode Arrays
| Part No. | SM24 |
|---|---|
| Datasheet | SM24 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | ESD Diode Arrays |
| Buy | Stock & Price |
FEATURES
● ESD / transient protection of high speed data lines● IEC 61000-4-2 (ESD): ±30 kV (air), ±30 kV (contact)
● Working voltage: VRWM = 24V
● Low reverse clamping voltage
● RoHS compliant with Halogen-free Typical
APPLICATIONS
● Computers and peripherals● Portable electronics
● Industrial controls
● Set-Top Box
● Servers, Notebook, and Desktop PC
MECHANICAL DATA
● Case: SOT-23, SOT-323● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 ESD Diode Arrays SM24 SM24W SM24 SOT-23 SM24W SOT-323 Ordering Information Part Number SM24 SM24W Package SOT-23 SOT-323 Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code M24 M24
MAXIMUM RATINGS
(@ TA = 25℃ unless otherwise specified) Parameter IEC 61000-4-2; ESD (Air) IEC 61000-4-2; ESD (Contact) Peak Pulse Power (tp = 8/20μs) Peak Pulse Current (tp = 8/20μs) Symbol VESD-A VESD-C PPP IPP Value ±30 ±30 300 6 Unit kV kV W A Therma...
