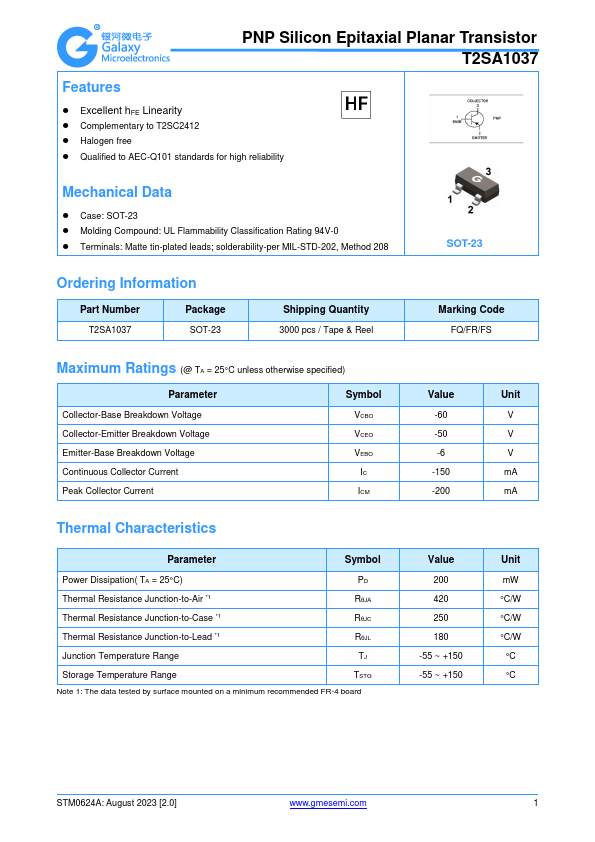

T2SA1037
Features
- Excellent h FE Linearity
- plementary to T2SC2412
- Halogen free
- Qualified to AEC-Q101 standards for high reliability
Mechanical Data
- Case: SOT-23
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
SOT-23
Ordering Information
Part Number T2SA1037
Package SOT-23
Shipping Quantity 3000 pcs / Tape & Reel
Marking Code FQ/FR/FS
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Continuous Collector Current Peak Collector Current
Symbol VCBO VCEO VEBO IC ICM
Value -60 -50 -6 -150 -200
Unit V V V m A m A
Thermal Characteristics
Parameter
Symbol
Power Dissipation( TA = 25°C)
Thermal Resistance Junction-to-Air
- 1
RθJA
Thermal Resistance Junction-to-Case
- 1
RθJC
Thermal Resistance Junction-to-Lead
- 1
RθJL
Junction Temperature Range
Storage...
