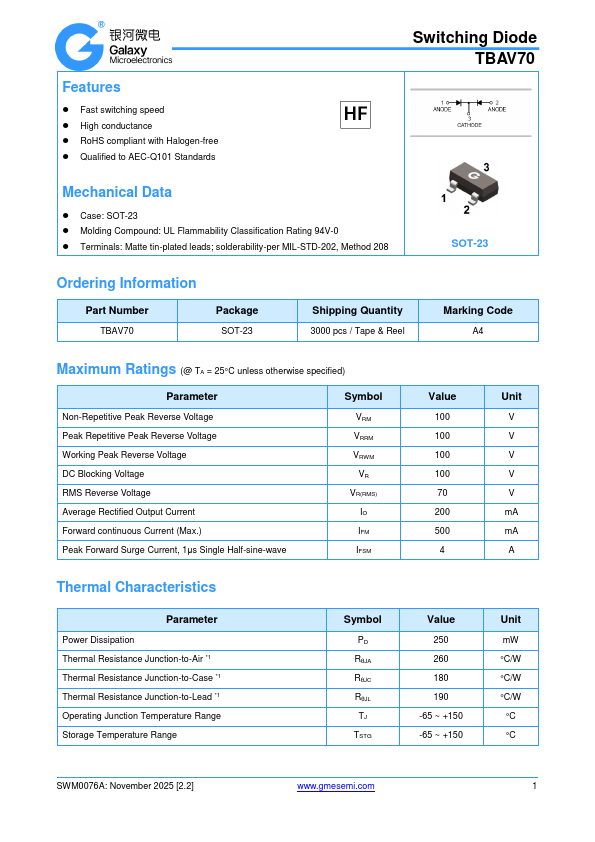

TBAV70
Features
- Fast switching speed
- High conductance
- Ro HS pliant with Halogen-free
- Qualified to AEC-Q101 Standards
Switching Diode TBAV70
Mechanical Data
- Case: SOT-23
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
SOT-23
Ordering Information
Part Number
Package
SOT-23
Shipping Quantity
3000 pcs / Tape & Reel
Marking Code
A4
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Non-Repetitive Peak Reverse Voltage Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage RMS Reverse Voltage Average Rectified Output Current Forward continuous Current (Max.) Peak Forward Surge Current, 1μs Single Half-sine-wave
Symbol
VRM VRRM VRWM
VR VR(RMS)
IO IFM IFSM
Value
100 100 100 100 70 200 500
Unit
V V V V V m A m A A
Thermal Characteristics
Parameter
Power Dissipation Thermal Resistance Junction-to-Air
- 1 Thermal Resistance Junction-to-Cas...
