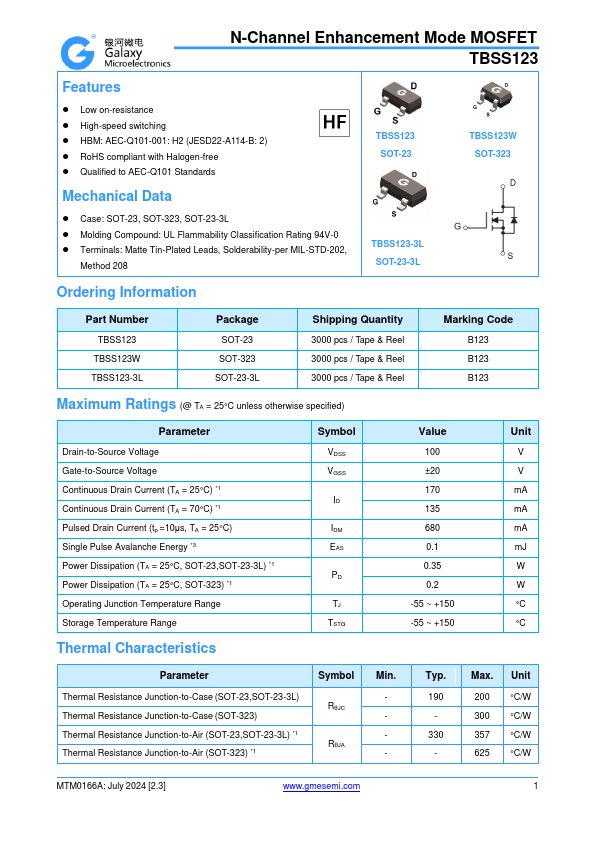

TBSS123W
Features
- Low on-resistance
- High-speed switching
- HBM: AEC-Q101-001: H2 (JESD22-A114-B: 2)
- Ro HS pliant with Halogen-free
- Qualified to AEC-Q101 Standards
Mechanical Data
- Case: SOT-23, SOT-323, SOT-23-3L
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte Tin-Plated Leads, Solderability-per MIL-STD-202,
Method 208
TBSS123 SOT-23
TBSS123-3L SOT-23-3L
TBSS123W SOT-323
Ordering Information
Part Number
TBSS123 TBSS123W TBSS123-3L
Package
SOT-23 SOT-323 SOT-23-3L
Shipping Quantity
3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Marking Code
B123 B123 B123
Parameter
Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current (TA = 25°C)
- 1 Continuous Drain Current (TA = 70°C)
- 1 Pulsed Drain Current (tp =10μs, TA = 25°C) Single Pulse Avalanche Energy
- 3 Power Dissipation (TA = 25°C, SOT-23,SOT-23-3L)
- 1 Power Dissipation (TA = 25°C, SOT-323)
- 1 Operating...
