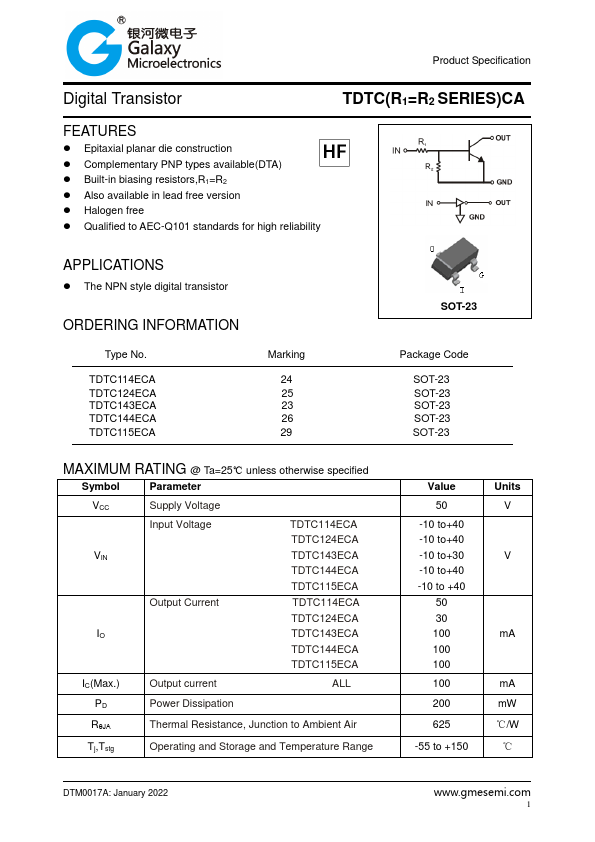

TDTC114ECA
FEATURES
- Epitaxial planar die construction
- plementary PNP types available(DTA)
- Built-in biasing resistors,R1=R2
- Also available in lead free version
- Halogen free
- Qualified to AEC-Q101 standards for high reliability
APPLICATIONS
- The NPN style digital transistor
ORDERING INFORMATION
Type No.
TDTC114ECA TDTC124ECA TDTC143ECA TDTC144ECA TDTC115ECA
Marking
24 25 23 26 29
SOT-23
Package Code
SOT-23 SOT-23 SOT-23 SOT-23 SOT-23
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol
Parameter
Supply Voltage
Input Voltage
Output Current IO
TDTC114ECA TDTC124ECA TDTC143ECA TDTC144ECA TDTC115ECA TDTC114ECA TDTC124ECA TDTC143ECA TDTC144ECA TDTC115ECA
IC(Max.)
Output current
Power Dissipation
RθJA
Thermal Resistance, Junction to Ambient Air
Tj,Tstg
Operating and Storage and Temperature Range
Value 50
-10 to+40 -10 to+40 -10 to+30 -10 to+40 -10 to +40
50 30 100 100 100...
