TPESD1CAN - TVS Diode Arrays

Features

  • ESD / transient protection of high speed data lines.
  • IEC 61000-4-2 (ESD): ±30 kV (air), ±30 kV (contact).
  • Working voltage: VRWM = 24V.
  • Low reverse clamping voltage.
  • Ultra low leakage current.
  • Due to the integrated diode structure only one small package is needed to protect two CAN bus lines.
  • RoHS compliant with Halogen-free.
  • Qualified to AEC-Q101 Standards Typical.

📥 Download Datasheet

Datasheet preview – TPESD1CAN

📁 Similar Datasheet

Other Datasheets by GME

    Full PDF Text Transcription

    Click to expand full text

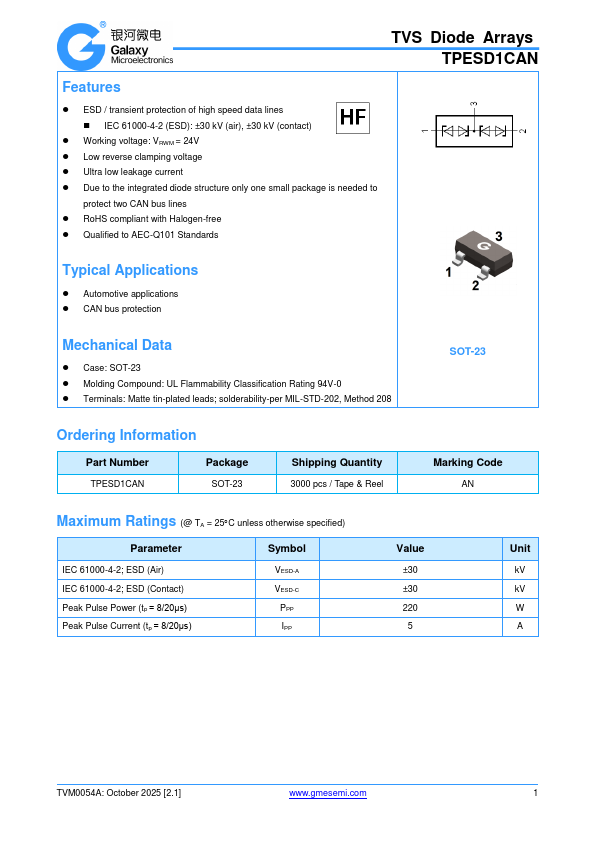

    TVS Diode Arrays TPESD1CAN Features  ESD / transient protection of high speed data lines  IEC 61000-4-2 (ESD): ±30 kV (air), ±30 kV (contact)  Working voltage: VRWM = 24V  Low reverse clamping voltage  Ultra low leakage current  Due to the integrated diode structure only one small package is needed to protect two CAN bus lines  RoHS compliant with Halogen-free  Qualified to AEC-Q101 Standards Typical Applications  Automotive applications  CAN bus protection Mechanical Data  Case: SOT-23  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number TPESD1CAN Package SOT-23 Shipping Quantity 3000 pcs / Tape & Reel Marking Code AN Maximum Ratings (@ TA =
